For mounting legacy Thermalright AXP90R / AXP90I coolers on AMD AM5. Exact hole spacing and supplied hardware remain subject to TK Lab physical measurement.
/Accessories/A004
ACCESSORY / A004
AXP90R / AXP90I AM5 Rotated-orientation Mount
Third-party · 猛禽睿米的魔改大师兄 · Mounting kit
Discontinued; the designer no longer produces it
FITMENT × CONSTRUCTION
Compatibility, construction, and installation
Third-party metal mounting set. Material, plate thickness, hole spacing, and hardware weight remain pending physical measurement.
Uses paired metal mounting bars with the stock AM5 motherboard backplate. Orientation matches the AXP90-X47 / X53 on AM4 / AM5: fins run left-to-right and the airflow channel opens toward the top and bottom of the motherboard, reducing blockage from memory and the VRM heatsink. The heatpipe ends sit closer to the VRM area, however, and may interfere with its heatsink; this occurs on TK Lab's ASUS ROG STRIX X870-I GAMING WIFI.
AMD AM5
Stock AM5 backplate plus paired metal mounting bars
Left-to-right fin orientation, matching AXP90-X47 / X53 installation on AM4 / AM5
Heatpipe ends may interfere with the VRM heatsink; this is confirmed on the ASUS ROG STRIX X870-I GAMING WIFI.
No revision

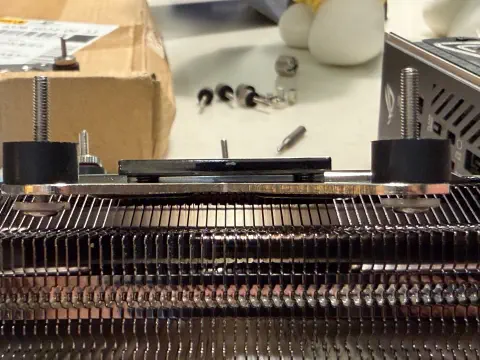

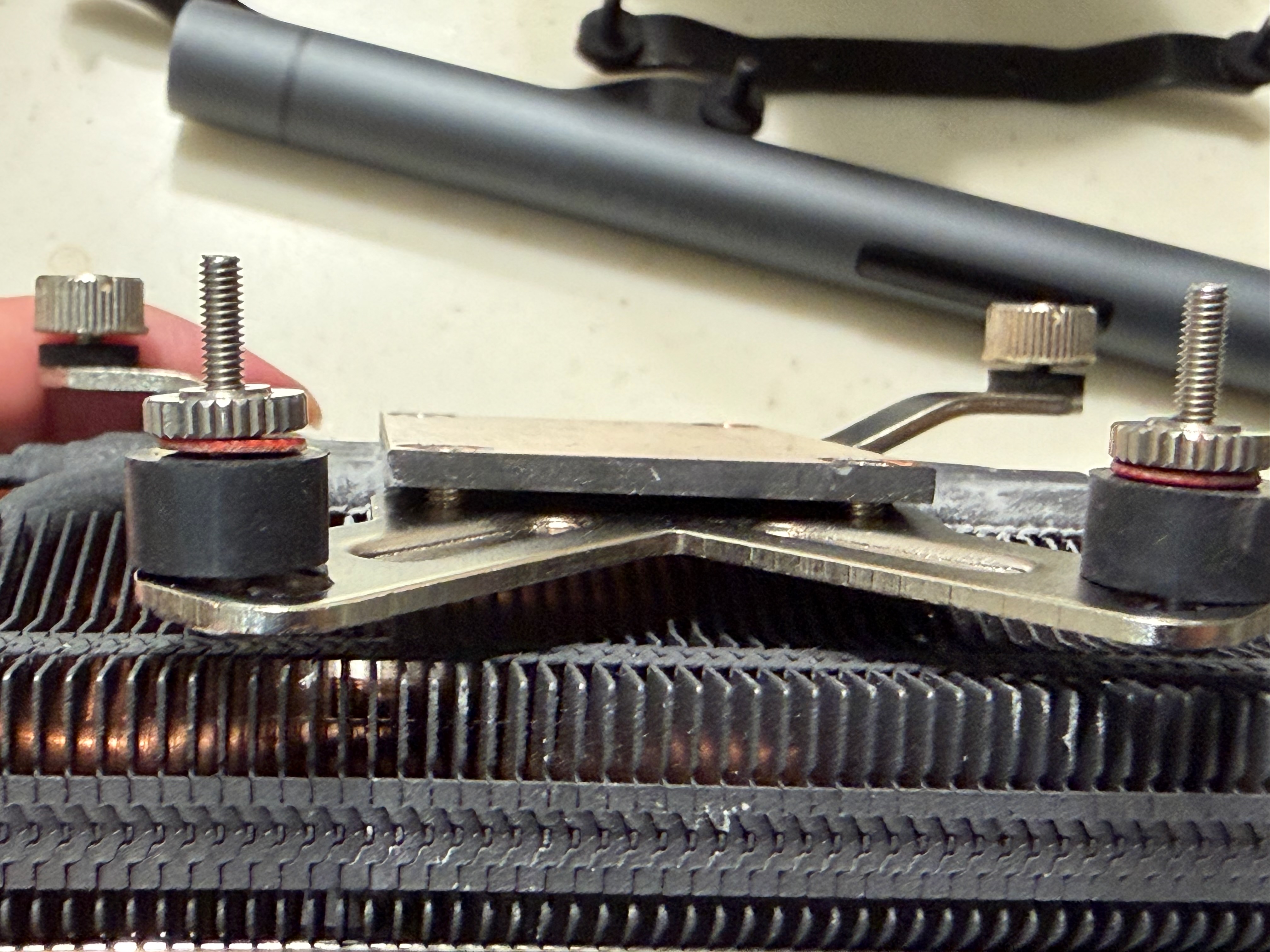

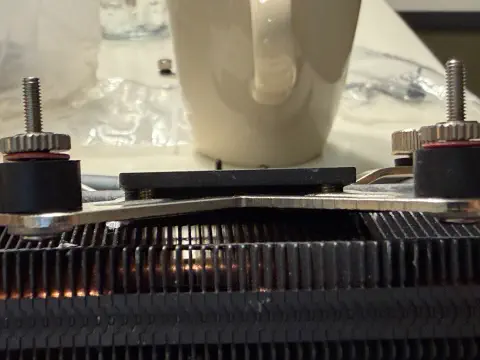

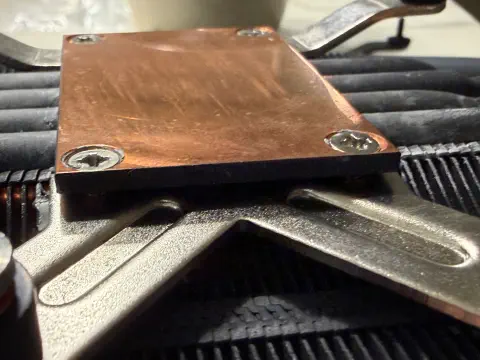

TK Lab tests O030–O045 and installation close-ups M159–M162
Designed and made by 猛禽睿米的魔改大师兄 on Xianyu; TK Lab physical record
ACCESSORY × COOLER × TEST
Cooler and test relationships
INSTALLATION PHOTOS
Accessory and installation photos
01 / 04
Installation and compatibility record for this TK Lab cooling test configuration.
