/Coolers/Alpenfohn Black Ridge
COOLER MODEL / C005
Alpenfohn Black Ridge
Alpenföhn · 下吹式／下置風扇
Published specifications, derived values, and TK Lab physical notes are labelled separately. Missing fields are never filled from a merely similar product.
PHYSICAL SPECIFICATION
Heatsink construction and specifications
SIZE / MASS
Overall dimensions (L × W × H)140 × 120 × 47 mm
Heatsink dimensions (L × W × H)Not separately published
With fan438 g
Without fan—
The manufacturer publishes 438g including the fan, but no heatsink-only mass.
- Layout
- 下吹式／下置風扇
- Heatpipes
- 6 × Ø6 mm · 銅／黑色鍍鎳
- Fins
- 鋁
- Fin thickness / gap
- Not published
- Base material
- 銅
- CPU contact surface
- 銅底板
- Surface finish
- 黑色鍍鎳
- Socket support
- Intel / AMD（依隨附扣具版本）
- Official thermal rating
- 95 W TDP
- Fan support
- 下置 92 × 15 mm；VLP RAM 可下置 120 × 12/15 mm；上置 120 × 25 mm
- RAM clearance
- 標準模式 RAM 最高 33 mm；下置 120mm 需 VLP RAM
- PCIe / motherboard clearance
- 部分 Mini-ITX 主機板需顯卡延長線；AMD 的 ASRock、Gigabyte、MSI ITX 可能受元件配置影響
- Mounting
- Intel／AMD 螺絲固定系統
- Warranty
- Not published
Source: Alpenföhn 官方規格與相容性說明Open specification source ↗
TK LAB / FITMENT NOTE
Fitment and interference note
Not written yet. Add verified motherboard, memory, or case fitment observations from the admin panel.
A heatsink-only mass derived from official complete and fan weights is explicitly labelled as calculated. Coatings, mounting revisions, and production batches can still change the result.
PHYSICAL SAMPLES
3 physical samples
Separate cooler IDs distinguish physical samples of the same model from configuration differences.
STOCK FAN
Included fan
The model comes directly from the fan catalog. The searchable relationship remains available even before photos are published.
COOLER × FAN × TEST
Related tests
Dual-fan configuration
Dual-fan configuration
Dual-fan configuration
Dual-fan configuration
Fan
Fan
History and sample notes
This section will hold launch history, naming changes, material versions, discontinuation status, sources, and differences between physical samples. Long-form research links to a note instead of being duplicated across test pages.

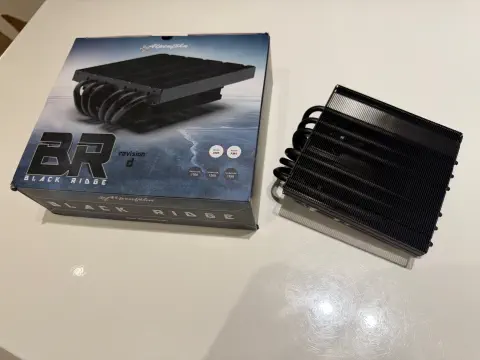

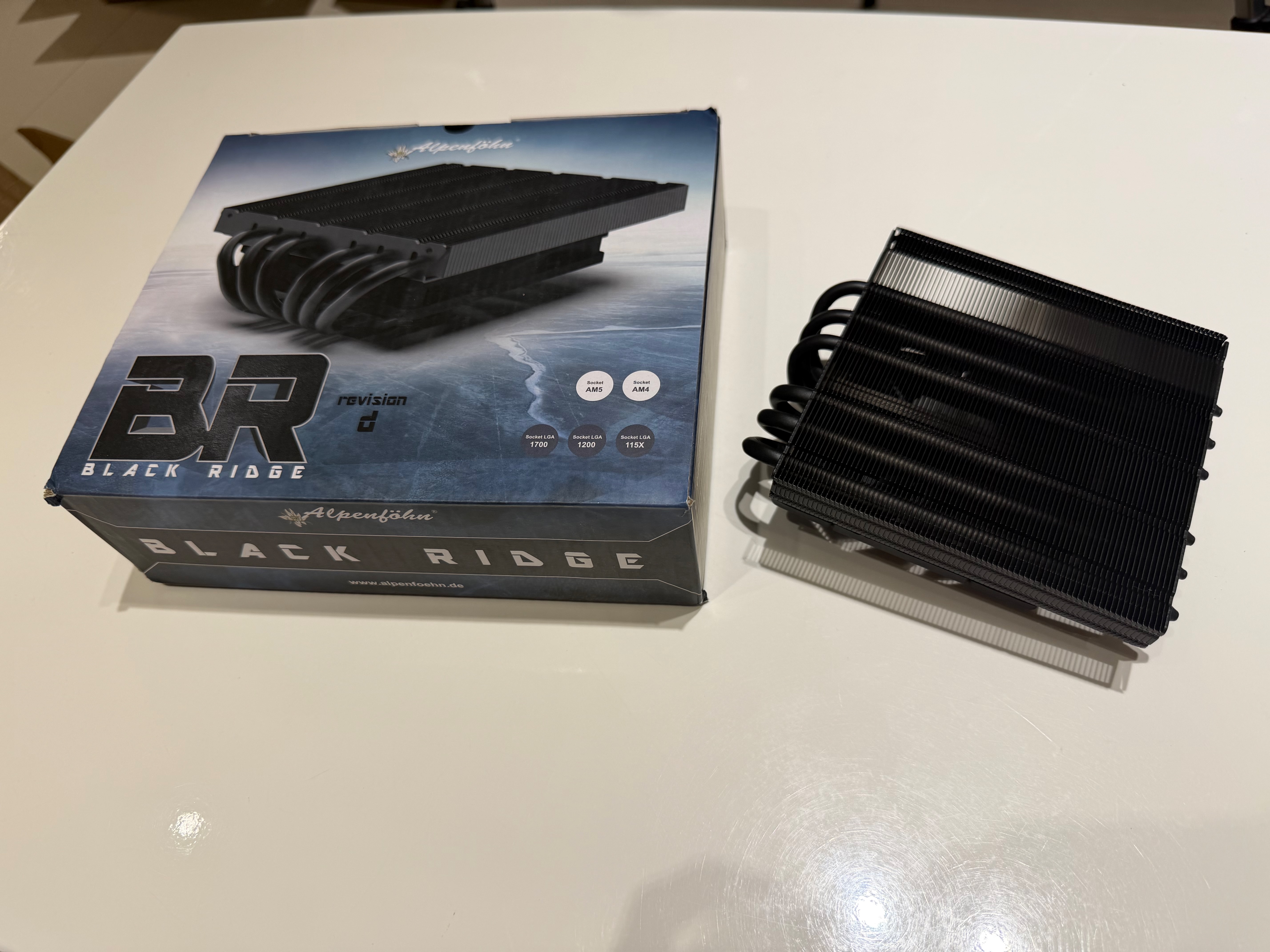

INSTALLATION PHOTOS
Heatsink, packaging, and installation
01 / 10
Product and installation detail from the TK Lab low-profile cooling database.
