S5M003 / UNIT NHL9A-01 / S5M / 48mm

INDIVIDUAL TEST RECORD · S5M003 · UNIT NHL9A-01

＋

CPU PROFILEStock settings

The cooler and each fan link to separate profiles; an air duct is listed as a test accessory, and the result still belongs to the complete configuration.

R23 Score30,346ptsS5M · #4 / 6
R23 Sustained Power117.2WS5M · #4 / 6
AIDA64 Heat Dissipation108.3WS5M · #4 / 6
Noise66.2dBAS5M · #4 / 5
MEASURED PERFORMANCE PROFILECompared within S5M
  1. 01
    R23 ScoreMulti-core score
    30,346 pts#4 of 6 · P50
  2. 02
    R23 SustainedLast-five-minute average power
    117.2 W#4 of 6 · P50
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    108.3 W#4 of 6 · P50
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.26 W/mm#5 of 6 · P33
  5. 05
    QuietnessMeasured dBA in the same environment; lower is better
    66.2 dBA#4 of 5 · P40

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
S5M003
Unit ID
NHL9A-01
Height
48 mm
Environment
S5M
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM66.7°CMax 67°C
Motherboard50.8°CFinal-five-minute average
DIMM53.9°CMax 55.8°C
Chipset68.6°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.31°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
58.9°C
MISC VRM Avg
64°C
SSD Avg
51.8°C
CPU_FAN Avg
4,163.9 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
S5M; state pending

CONTROLLED ACOUSTIC RECORD

Measured acoustics

Noise results compare only formal records from the same environment and measurement generation. GM1351 is the current meter; a future professional-meter generation will remain separate from these results.

Average66.2 dBA
Valid range65.9–66.5 dBA
Valid samples43One sample per second
Sound meterGM1351Current measurement generation
S5M quietness #4 / 5This rank compares only formal records from the same environment and GM1351 measurement generation.
Sampling and exclusion log
Valid ranges
00:20–01:02，共43筆
Excluded range
前段測試操作，其中 00:15–00:17 滑鼠靠近噪音計
Source video
DJI_20260723_233321_717_video.mov
ACOUSTIC VIDEO

S5M003 S5M in-case noise test (GM1351)

CC BY 4.0 · TK Lab

INSTALLATION PHOTOS

Installation photos

1 media items
01 / 01

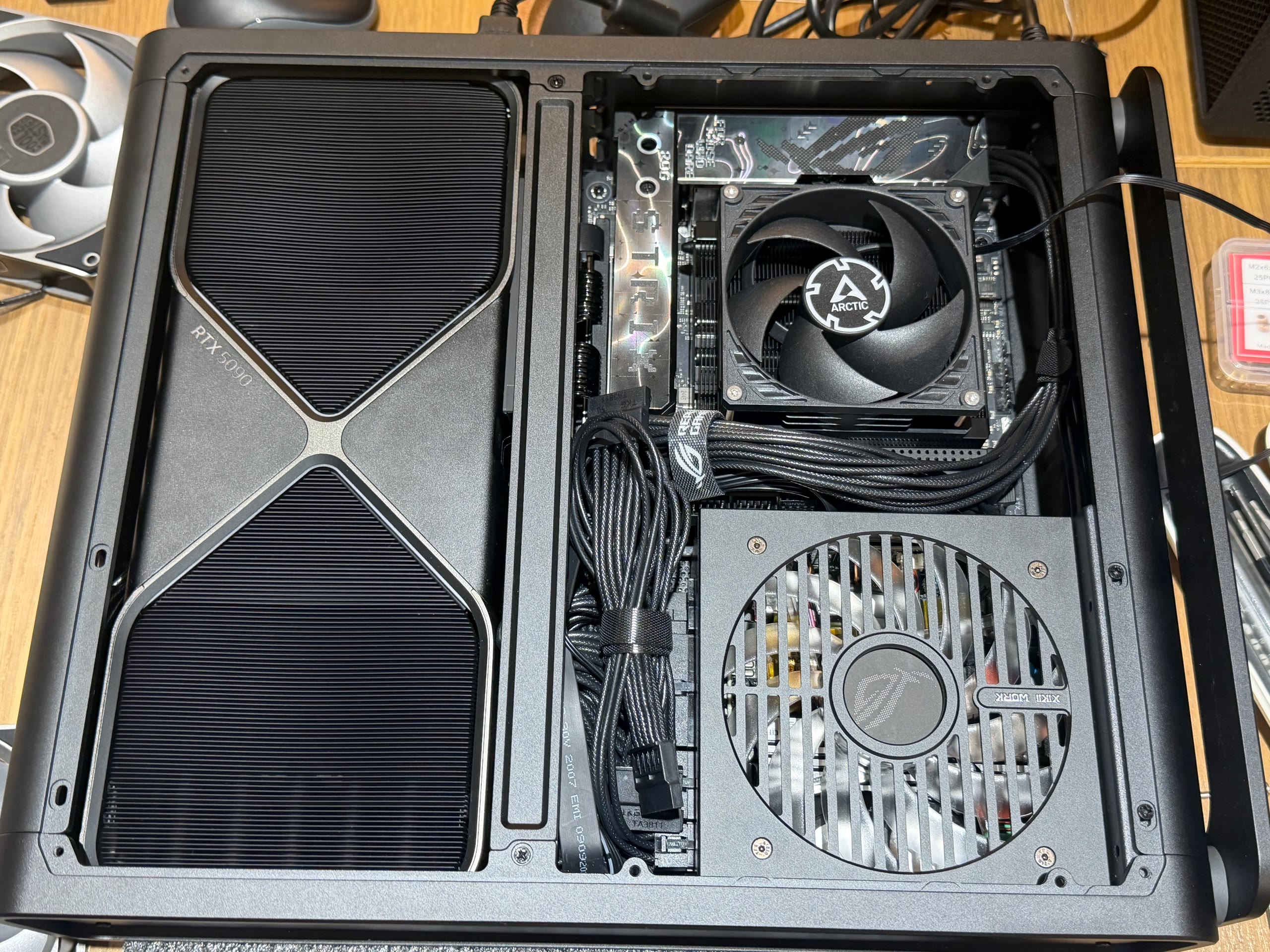

S5M003 S5M system overview: Noctua NH-L9a-AM5 with the ARCTIC P9 Max.
