/Fans/Noctua NF-B9 PWM
FAN MODEL / F029
Noctua NF-B9 PWM
Noctua · NH-L12 Ghost Edition stock fan / pending test · 92 × 92 × 25 mm
Manufacturer specifications and TK Lab measurements are stored separately. Rated airflow, pressure, and noise follow the manufacturer's test conditions.
RATED × MEASURED
Fan specification and measurement
Rated range0–1,600 RPM
TK LAB · 100% PWM measuredNot measured
- Dimensions
- 92 × 92 × 25 mm
- Bearing
- SSO
- Control / connector
- 4-pin PWM
- Rated max noise
- 17.6 dB(A)
- Rated max airflow
- 37.85 CFM / 64.3 m³/h
- Rated max static pressure
- 1.61 mmH₂O
- Rated voltage / current
- 12 V / —
- Power
- Not published
- Weight
- 80 g
- Warranty
- 6 years
- MTTF / Expected life
- Not published
- Source tier
- Manufacturer specification
Rated CFM, mmH₂O, and dB(A) use each manufacturer's own test conditions. They help identify product positioning but are not used as a cross-brand acoustic-performance ranking. TK Lab fields contain measured data only.
FAN × COOLER × TEST
Coolers tested with this fan
This fan is catalogued, but no cooler performance test has been completed yet.Specifications and photos can be stored now. Related records will appear here once testing is complete.
Specifications, acoustics, and fit
This section will collect rated specifications, measured maximum RPM, PWM range, sound character, adapter requirements, and heatsink fit. Formal acoustic rankings use only sound-meter data captured under controlled conditions.
INSTALLATION PHOTOS
Fan photos and acoustic records
01 / 01

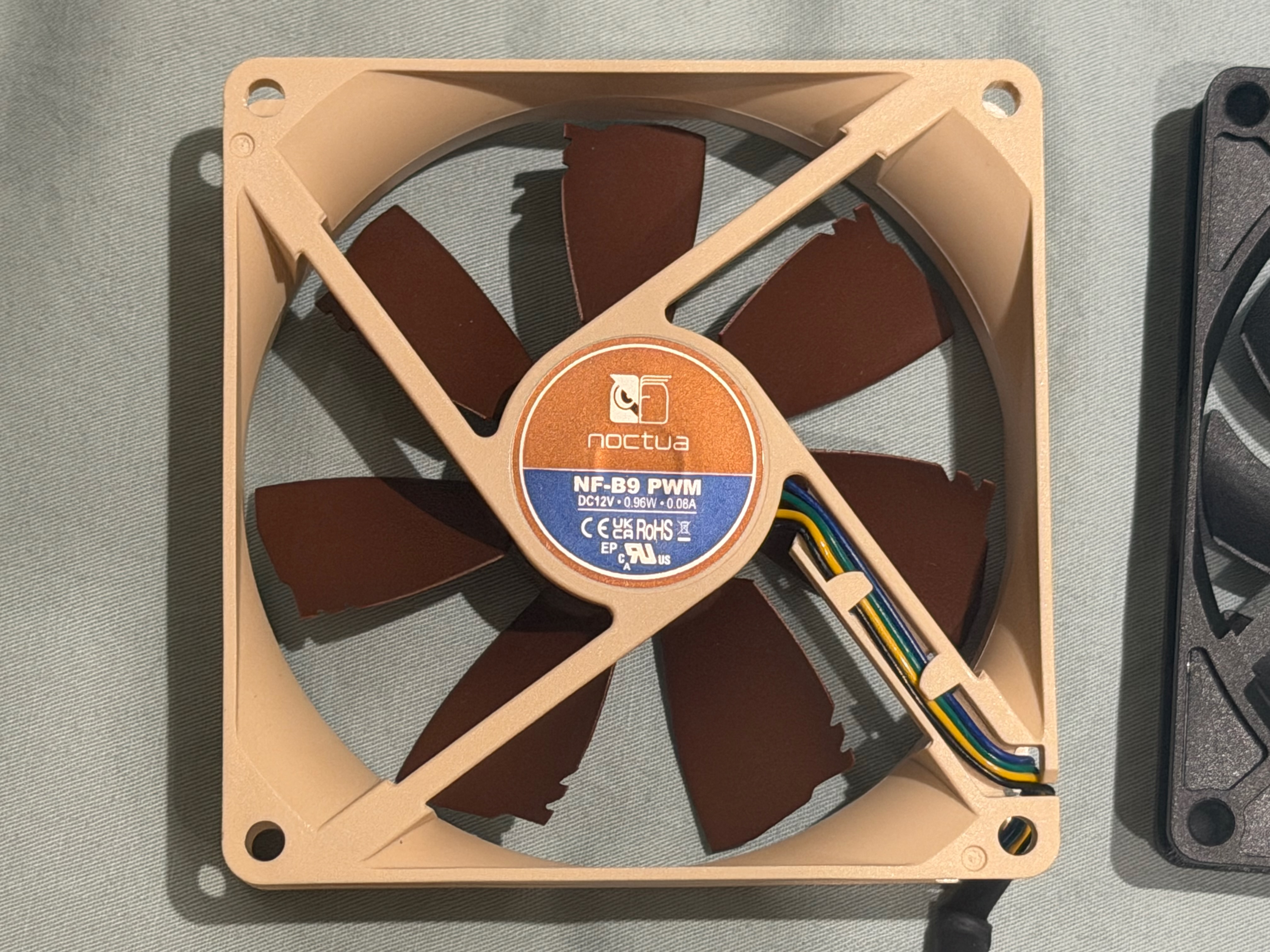

Fan detail photographed during TK Lab low-profile cooling research.
