/Fans/SilverStone HA1220H12SA-Z
FAN MODEL / F018
SilverStone HA1220H12SA-Z
SilverStone · NT06-PRO stock fan · 120 × 120 × 20 mm
Manufacturer specifications and TK Lab measurements are stored separately. Rated airflow, pressure, and noise follow the manufacturer's test conditions.
RATED × MEASURED
Fan specification and measurement
Rated range1,000–2,200 RPM
TK LAB · 100% PWM measured2,109 RPMO044 RPM log
Difference from rated maximum -91 RPM · -4.1%
- Dimensions
- 120 × 120 × 20 mm
- Bearing
- Sleeve Bearing
- Control / connector
- 4-pin PWM
- Rated max noise
- Not published
- Rated max airflow
- 73.97 CFM
- Rated max static pressure
- Not published
- Rated voltage / current
- 12 V / —
- Power
- Not published
- Weight
- Not published
- Warranty
- Not published
- MTTF / Expected life
- 30,000 h
- Source tier
- Official cooler specification
Published cooler specifications list 33.623–73.969 CFM but no maximum static pressure or fan noise.
Rated CFM, mmH₂O, and dB(A) use each manufacturer's own test conditions. They help identify product positioning but are not used as a cross-brand acoustic-performance ranking. TK Lab fields contain measured data only.
FAN × COOLER × TEST
Coolers tested with this fan
Specifications, acoustics, and fit
This section will collect rated specifications, measured maximum RPM, PWM range, sound character, adapter requirements, and heatsink fit. Formal acoustic rankings use only sound-meter data captured under controlled conditions.

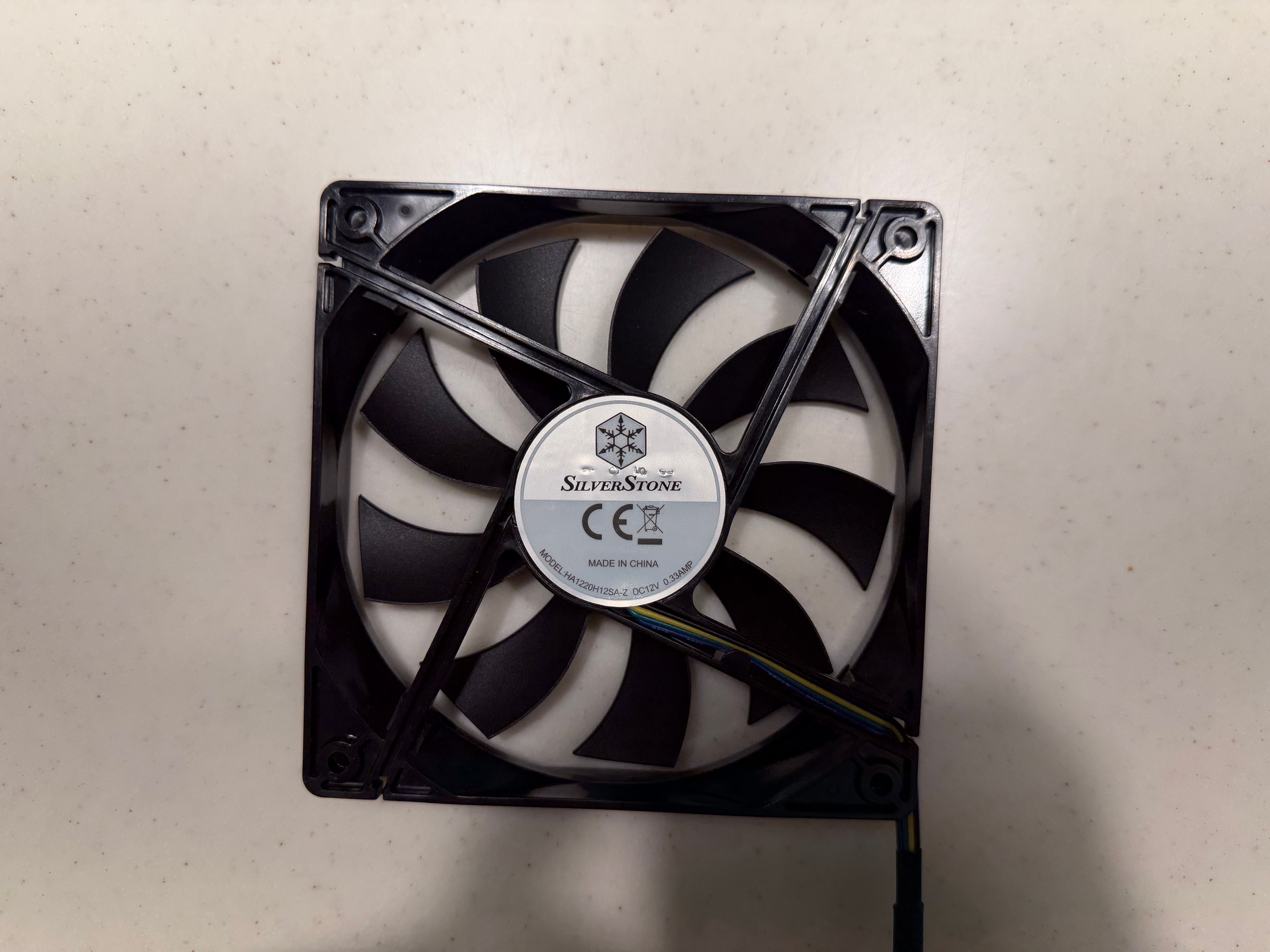

INSTALLATION PHOTOS
Fan photos and acoustic records
01 / 01
Installation and compatibility record for this TK Lab cooling test configuration.
