Officially compatible with all NH-L9i and NH-L9a variants, bridging a 5–45 mm gap between a 37 mm NH-L9 cooler and a perforated side or top panel. TK Lab also tested a single 10 mm layer in S5M006.
/Accessories/A005
ACCESSORY / A005
Noctua NA-FD1 Fan Duct Kit
Original · Noctua · Air duct
Official accessory; TK Lab completed a 10 mm duct comparison
FITMENT × CONSTRUCTION
Compatibility, construction, and installation
Modular EVA foam spacers: 10 mm ×2, 7, 6, 5, 4, and 3 mm, combinable from 5 to 45 mm in 1 mm increments. Includes 16 plastic tubes and four steel bolts.
Stack spacers to the measured fan-to-panel gap, then locate them with the supplied bolts and trimmed plastic tubes. S5M006 uses a 10 mm effective height.
No revision
Noctua specifications and TK Lab S5M006 record
Open official source ↗ACCESSORY × COOLER × TEST
Cooler and test relationships
INSTALLATION PHOTOS
Accessory and installation photos
01 / 03

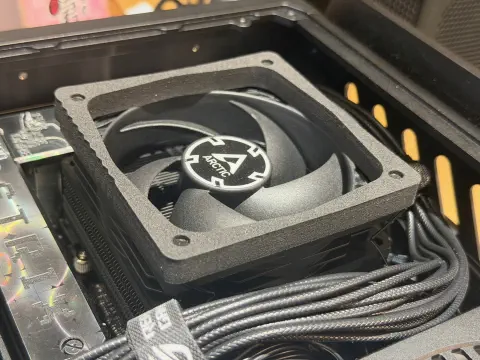

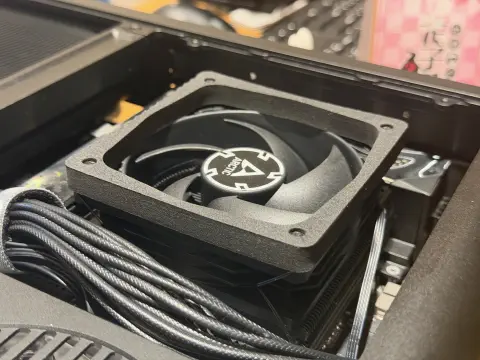

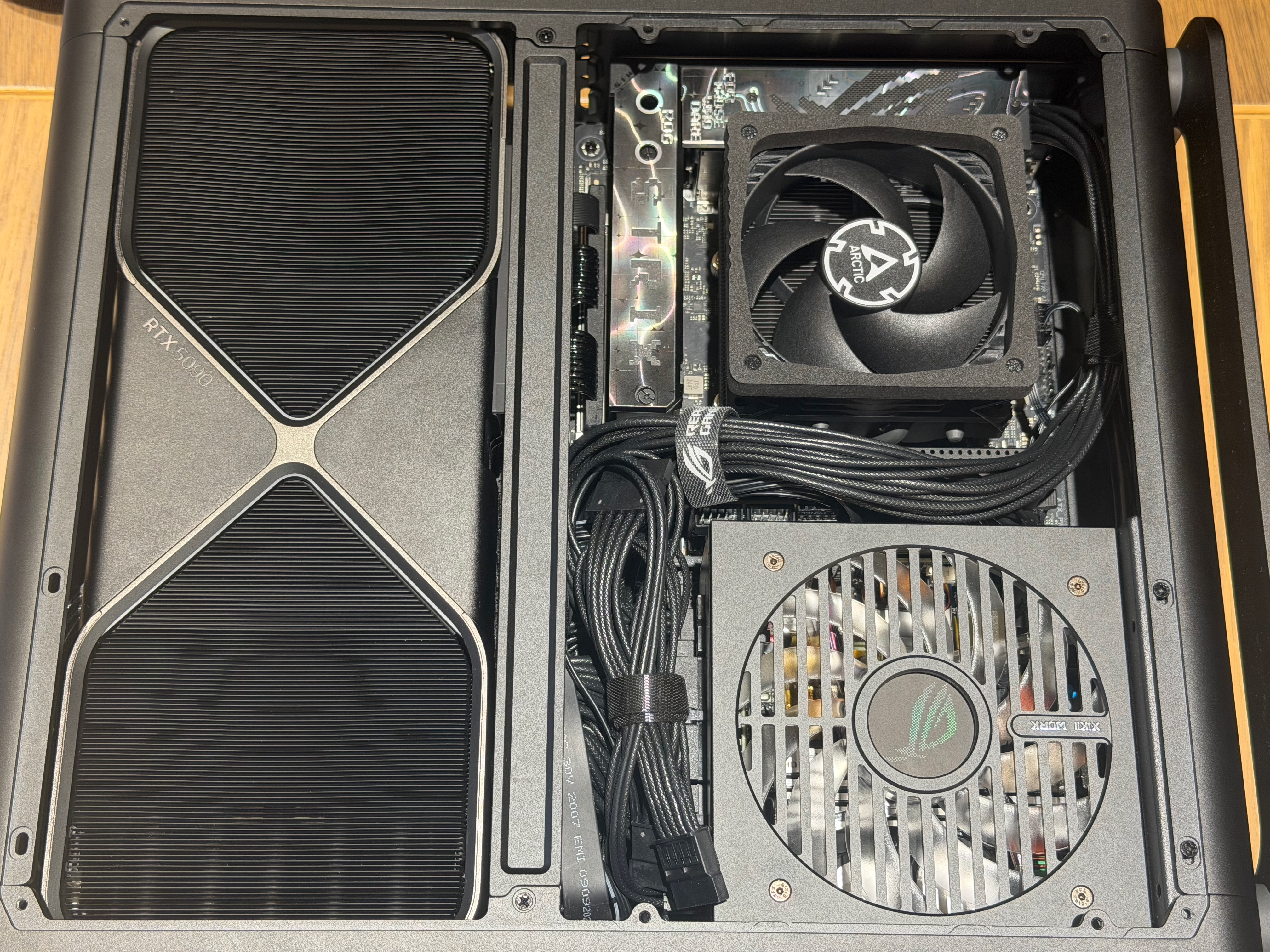

Complete S5M006 in-case configuration with an AXP90-X47 Full Copper Graphene, ARCTIC P9 Max, and 10 mm Noctua NA-FD1 duct.
