S5M006 / UNIT X47G-02 / S5M / 57mm

INDIVIDUAL TEST RECORD · S5M006 · UNIT X47G-02

FAN
Single fan
DUCT
Noctua NA-FD110 mm
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score34,242ptsS5M · #2 / 7
R23 Sustained Power144.1WS5M · #2 / 7
AIDA64 Heat Dissipation136.9WS5M · #2 / 7
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within S5M
  1. 01
    R23 ScoreMulti-core score
    34,242 pts#2 of 7 · P86
  2. 02
    R23 SustainedLast-five-minute average power
    144.1 W#2 of 7 · P86
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    136.9 W#2 of 7 · P86
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.4 W/mm#3 of 7 · P71

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
S5M006
Cooler ID
X47G-02
Test time
2026-07-28, 11:29:37 (UTC+8)
Height
57 mm
Environment
S5M
Case
NFC Skyreach 5 Mini (S5M)
Side panel
Closed
Air duct
Noctua NA-FD1 · 10 mm
Duct installation note
Single 10 mm EVA foam spacer; installed compression and perimeter contact coverage have not yet been recorded.
No-duct baseline
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

MATCHED DUCT COMPARISON

What the air duct changed

Compared with no duct
R23 score+788+2.4%33,454 → 34,242 pts
R23 sustained power+3.9 W+2.8%140.2 → 144.1 W
AIDA64 dissipation+5.1 W+3.9%131.8 → 136.9 W
DIMM average temperature−2.6°CLower61.2 → 58.6°C
Other component reductionsVDD VRM −1.9°CMotherboard −1.9°CChipset −1.2°CSSD −2.1°C

S5M005 and S5M006 use the same AXP90-X47 Full Copper Graphene sample, P9 Max, 28°C ambient, stock CPU profile, and 100% PWM. The recorded configuration change is the addition of a 10 mm Noctua NA-FD1. Temperature changes are shown in °C rather than a potentially misleading percentage. Both component runs were still warming near the end, so the direction is useful but exact deltas remain provisional. S5M006 acoustics are still pending and are not compared.

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM74.9°CMax 76°C
Motherboard55.7°CFinal-five-minute average
DIMM58.6°CMax 60°C
Chipset71.8°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.45°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
63.8°C
MISC VRM Avg
69.8°C
SSD Avg
50.7°C
CPU_FAN Avg
4,158.8 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Panel Closed · Duct Noctua NA-FD1 · 10 mm

INSTALLATION PHOTOS

Installation photos

4 media items
01 / 04

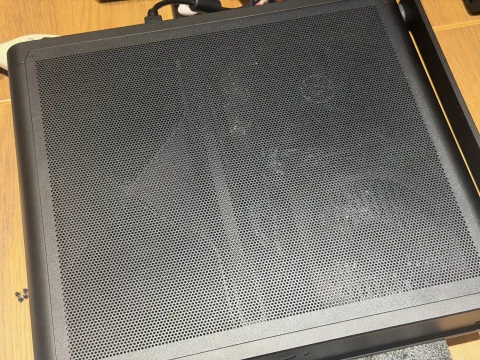

Complete S5M006 in-case configuration with an AXP90-X47 Full Copper Graphene, ARCTIC P9 Max, and 10 mm Noctua NA-FD1 duct.

Media IDM396Captured2026-07-28 03:09LicenseCC BY 4.0CreditTK LabView S5M006 →View original →
