O003 / UNIT AN400-01 / Open bench / 52mm
INDIVIDUAL TEST RECORD · O003 · UNIT AN400-01
FAN
Single fan
CPU PROFILEStock settings
The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.
MEASURED PERFORMANCE PROFILECompared within Open bench
01020304
CENTER 0 · OUTER RING P100- 01R23 ScoreMulti-core score37,695 pts#50 of 65 · P25
- 02R23 SustainedLast-five-minute average power177.3 W#47 of 76 · P39
- 03AIDA64 CoolingLast-five-minute heat dissipation165.4 W#49 of 75 · P36
- 04Cooling per HeightAIDA64 cooling divided by total height3.18 W/mm#12 of 75 · P85
Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.
TEST CONDITIONSConditions saved per record
- Test ID
- O003
- Cooler ID
- AN400-01
- Test time
- 2026-06-19, 15:27:00 (UTC+8)
- Height
- 52 mm
- Environment
- Open bench
- CPU operating profile
- Stock settings
- Fan
- CPU
- Ryzen 9 9950X3D
- Ambient
- 28°C
- PWM
- 100%
- Thermal paste
- ARCTIC MX-4
S5M COMPONENT TEMPERATURES
Component temperatures
Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.
Steady state reachedMaximum late-run sensor slope was 0.04°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
- SoC VRM Avg
- 56°C
- MISC VRM Avg
- 60°C
- SSD Avg
- 40°C
- CPU_FAN Avg
- 5,236.8 RPM
- Sampling window
- Final five minutes of AIDA64
- GPU load
- No GPU stress load
- Panel / duct
- Documented
PHOTOS / VIDEO
Installation photos
VIDEO
DeepCool AN400 Black with 4070 GPU 改裝扇 (O003) operation and noise video.
01 / 02

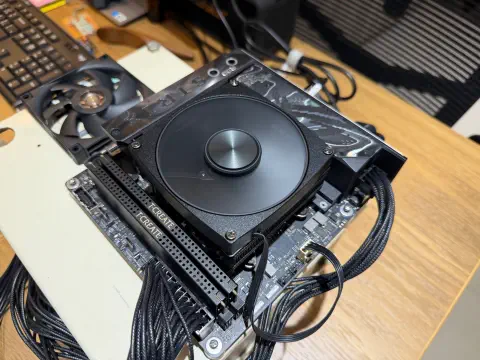

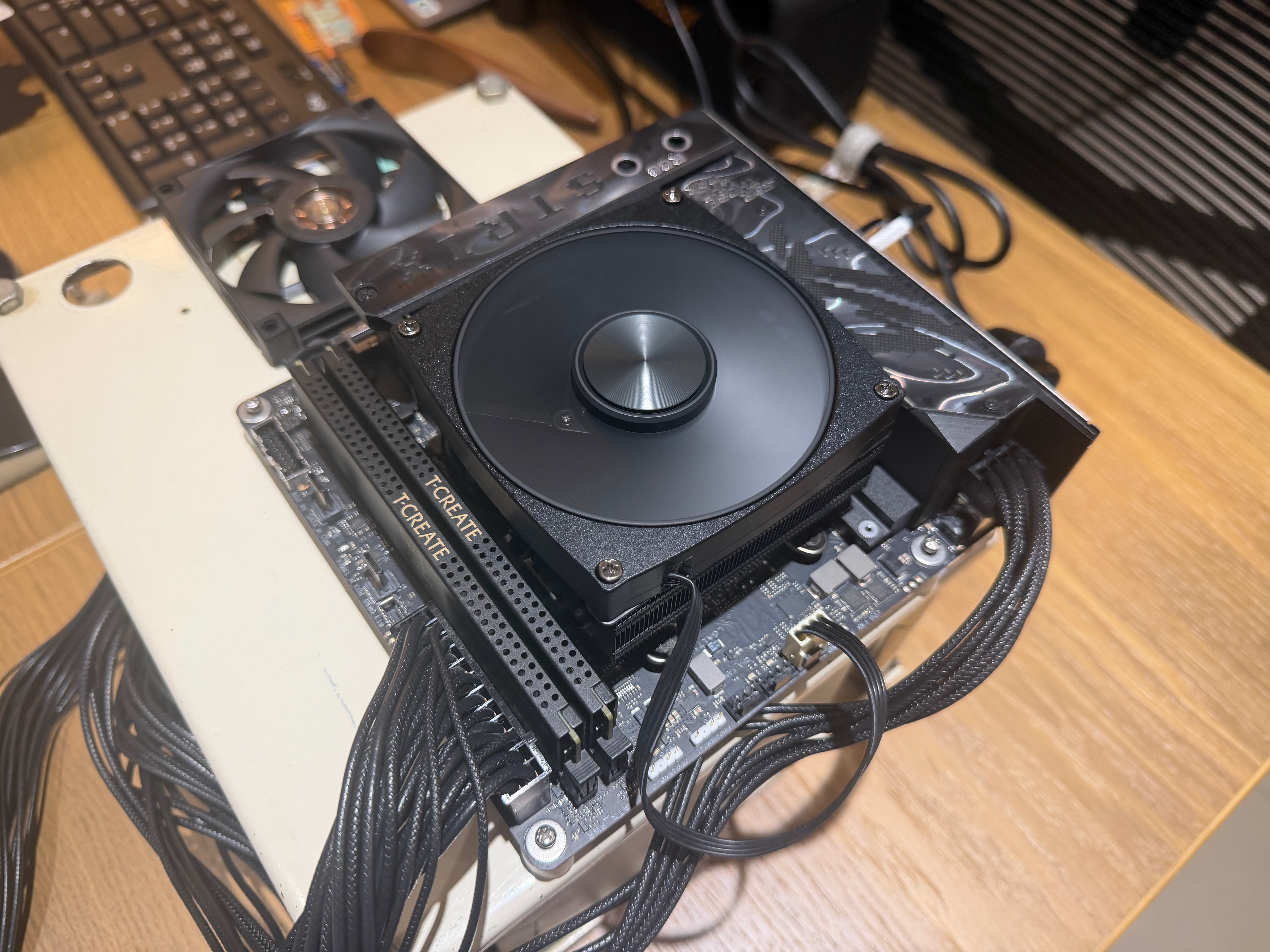

DeepCool AN400 Black with 4070 GPU 改裝扇 (O003) installation photo.
