O005 / UNIT XE02-01 / Open bench / 65mm

INDIVIDUAL TEST RECORD · O005 · UNIT XE02-01

FAN
Single fan · Stock fan
CPU PROFILEPBO / unlocked power limitsPPT 230W / TDC 175A / EDC 230A

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score41,196ptsOpen bench · #1 / 65
R23 Sustained Power218.5WOpen bench · #2 / 76
AIDA64 Heat Dissipation199.7WOpen bench · #2 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    41,196 pts#1 of 65 · P100
  2. 02
    R23 SustainedLast-five-minute average power
    218.5 W#2 of 76 · P99
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    199.7 W#2 of 75 · P99
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    3.07 W/mm#16 of 75 · P80

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O005
Cooler ID
XE02-01
Test time
2026-06-27, 12:12:36 (UTC+8)
Height
65 mm
Environment
Open bench
CPU operating profile
PBO / unlocked power limits
PBO limits (PPT / TDC / EDC)
PPT 230W / TDC 175A / EDC 230A
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM63°CMax 64°C
Motherboard36.9°CFinal-five-minute average
DIMM39.1°CMax 39.8°C
Chipset54.4°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 2.76°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
52.8°C
MISC VRM Avg
56°C
SSD Avg
34°C
CPU_FAN Avg
13,366 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

PHOTOS / VIDEO

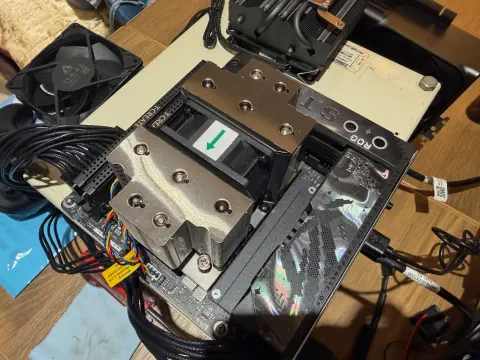

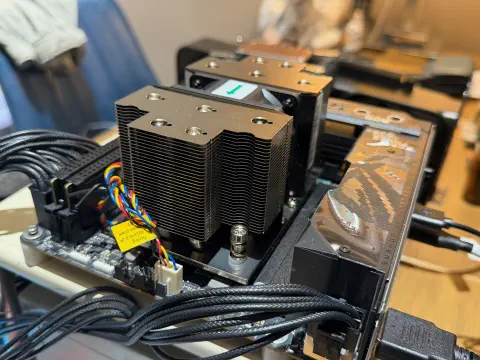

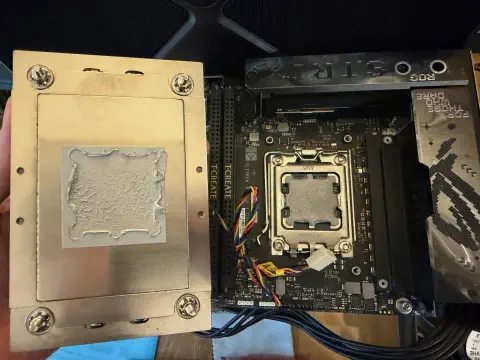

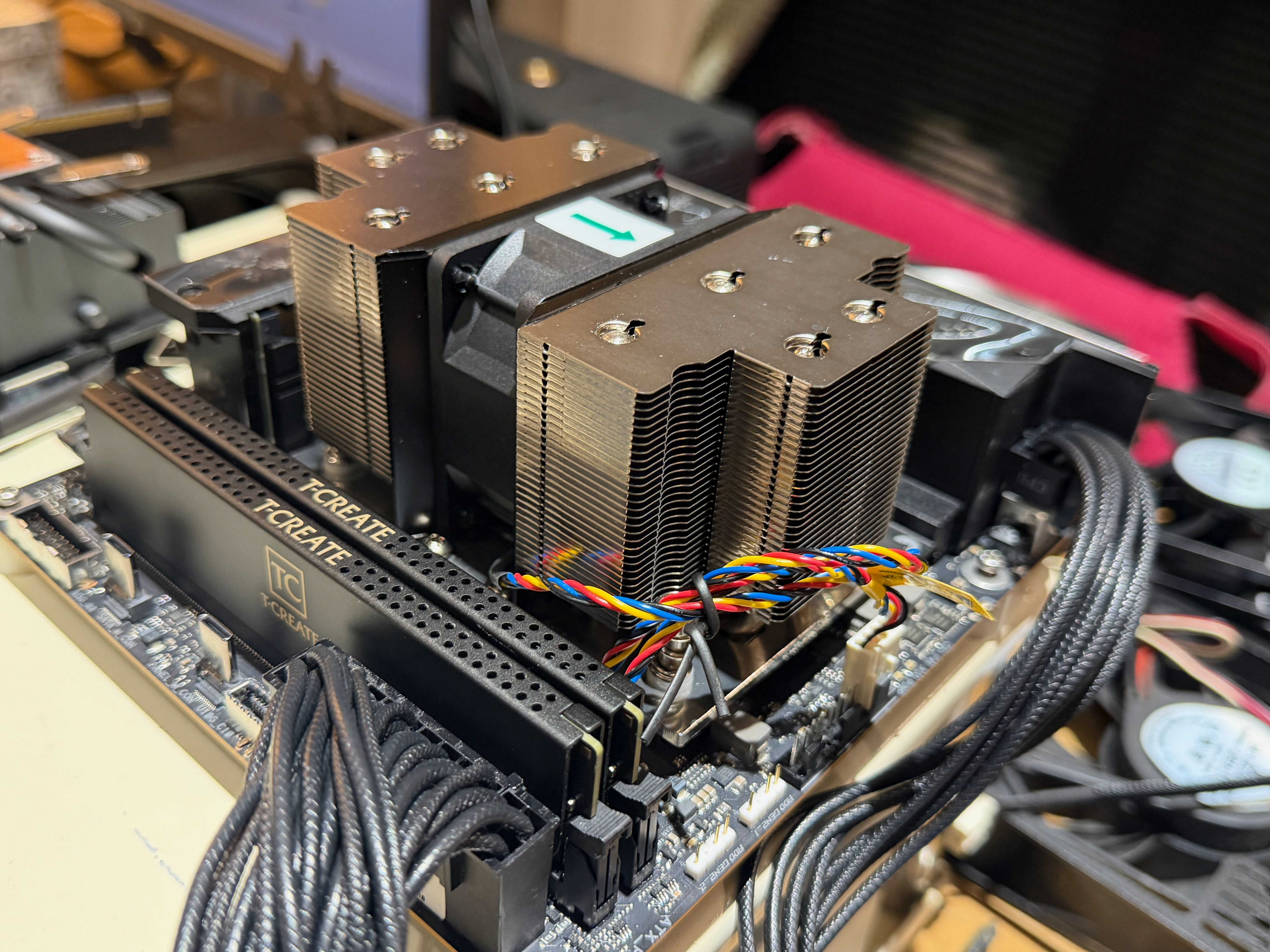

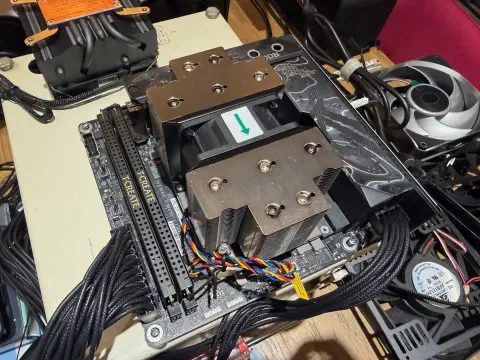

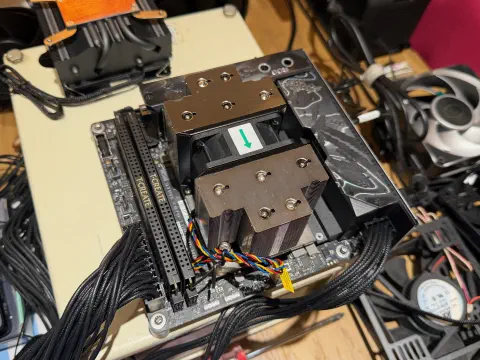

Installation photos

7 media items
VIDEO

SilverStone XE02-AM5 with an EVERFLOW FE6025BM: an O005 PBO test record also used for the matching O004 hardware configuration.

Media IDV003Captured2026-06-27LicenseCC BY 4.0CreditTK LabView O004 →View O005 →
