O007 / UNIT BR-01 / Open bench / 47mm

INDIVIDUAL TEST RECORD · O007 · UNIT BR-01

FAN
Single fan · Stock fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score33,068ptsOpen bench · #60 / 65
R23 Sustained Power127.7WOpen bench · #75 / 76
AIDA64 Heat Dissipation126WOpen bench · #70 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    33,068 pts#60 of 65 · P9
  2. 02
    R23 SustainedLast-five-minute average power
    127.7 W#75 of 76 · P3
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    126 W#70 of 75 · P8
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.68 W/mm#45 of 75 · P41

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O007
Cooler ID
BR-01
Test time
2026-06-26, 11:35:13 (UTC+8)
Height
47 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM69.6°CMax 70°C
Motherboard45.1°CFinal-five-minute average
DIMM49.5°CMax 50°C
Chipset53.6°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.29°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
64.4°C
MISC VRM Avg
62.7°C
SSD Avg
35.9°C
CPU_FAN Avg
2,944.2 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

INSTALLATION PHOTOS

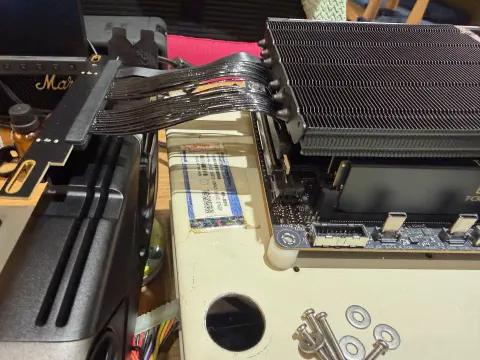

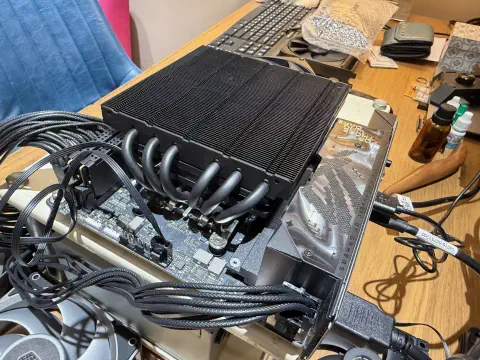

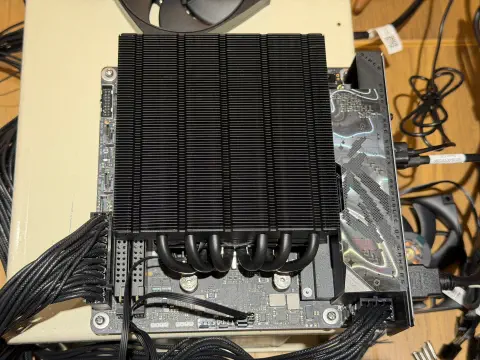

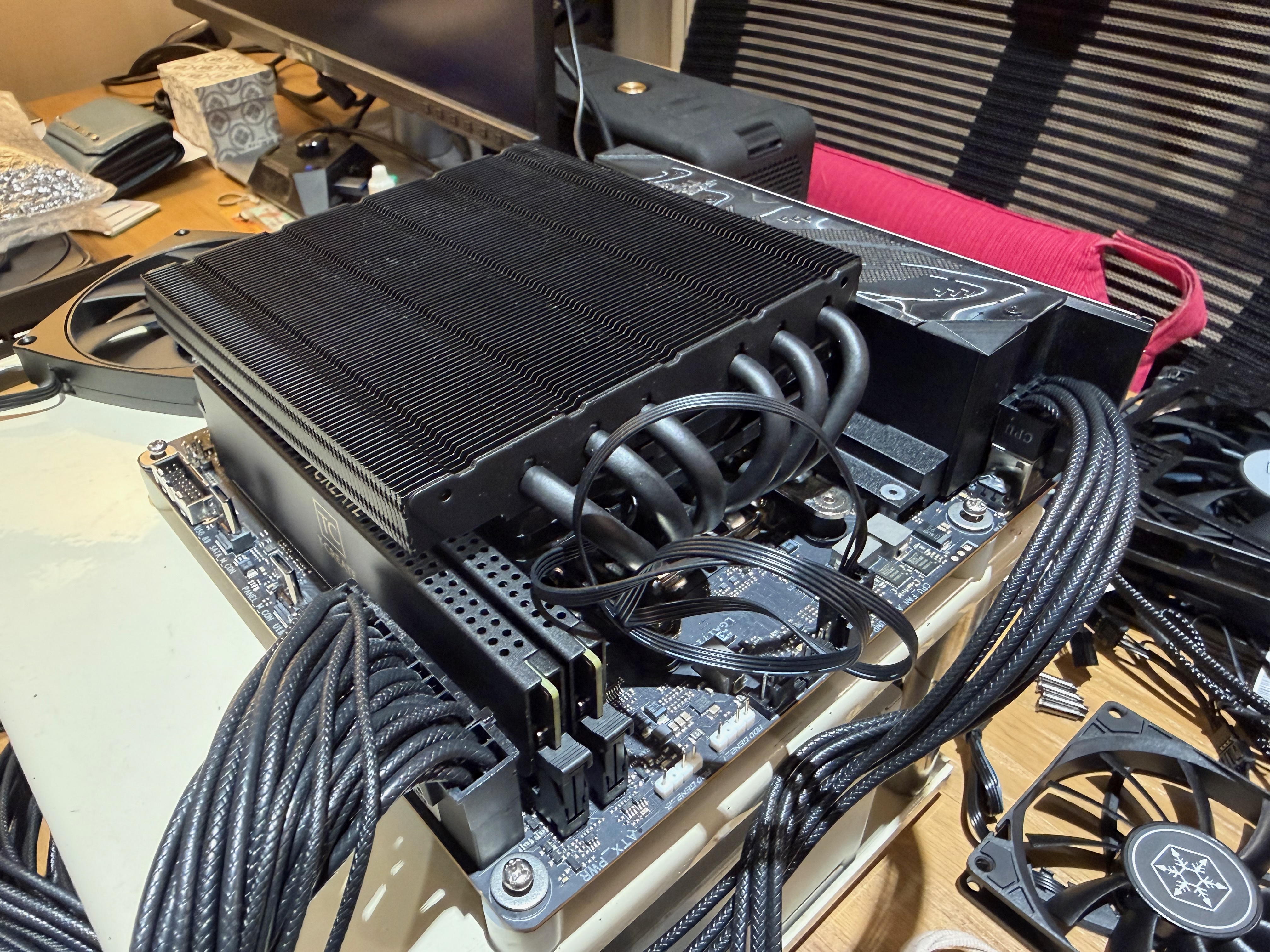

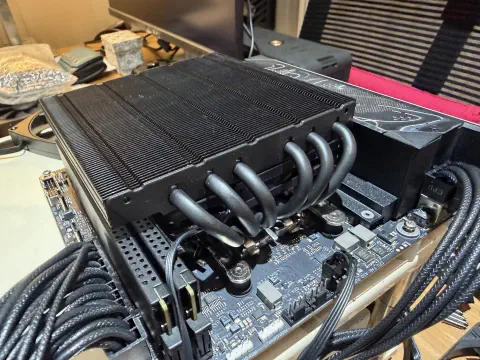

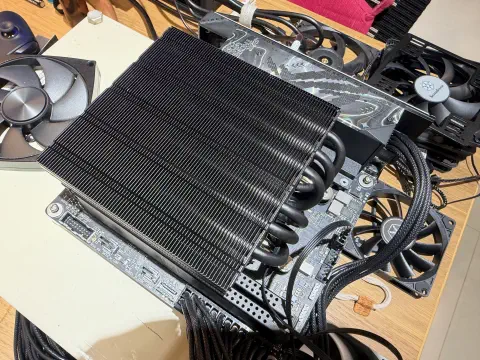

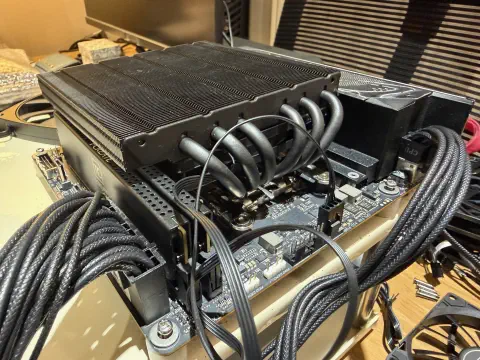

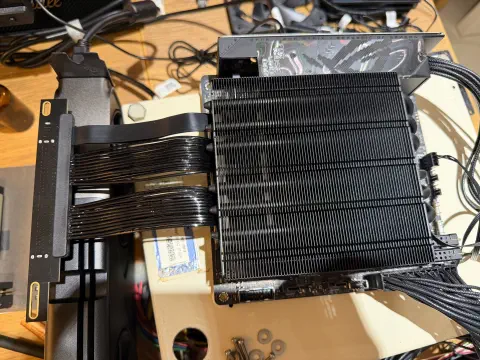

Installation photos

8 media items
