O009 / UNIT NT06-01 / Open bench / 112mm

INDIVIDUAL TEST RECORD · O009 · UNIT NT06-01

FAN 01
Lower fan
FAN 02
Upper fan
CPU PROFILEPBO / unlocked power limitsPPT 220W; TDC / EDC unchanged

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score40,837ptsOpen bench · #4 / 65
R23 Sustained Power210.9WOpen bench · #5 / 76
AIDA64 Heat Dissipation198WOpen bench · #3 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    40,837 pts#4 of 65 · P95
  2. 02
    R23 SustainedLast-five-minute average power
    210.9 W#5 of 76 · P95
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    198 W#3 of 75 · P97
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    1.77 W/mm#74 of 75 · P3

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O009
Cooler ID
NT06-01
Test time
2026-06-26, 17:51:32 (UTC+8)
Height
112 mm
Environment
Open bench
CPU operating profile
PBO / unlocked power limits
PBO limits (PPT / TDC / EDC)
PPT 220W; TDC / EDC unchanged
Fan configuration
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM66.2°CMax 67°C
Motherboard34.5°CFinal-five-minute average
DIMM35°CMax 35.8°C
Chipset50.3°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.26°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
52.5°C
MISC VRM Avg
57.2°C
SSD Avg
31.3°C
CPU_FAN Avg
2,969.6 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

INSTALLATION PHOTOS

Installation photos

9 media items
01 / 09

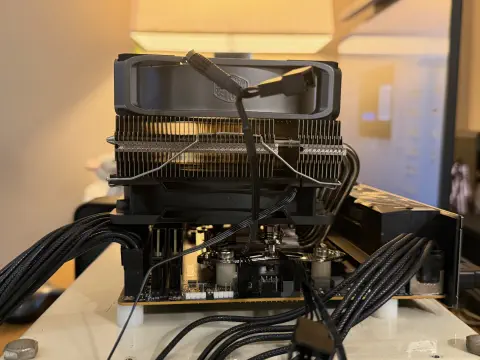

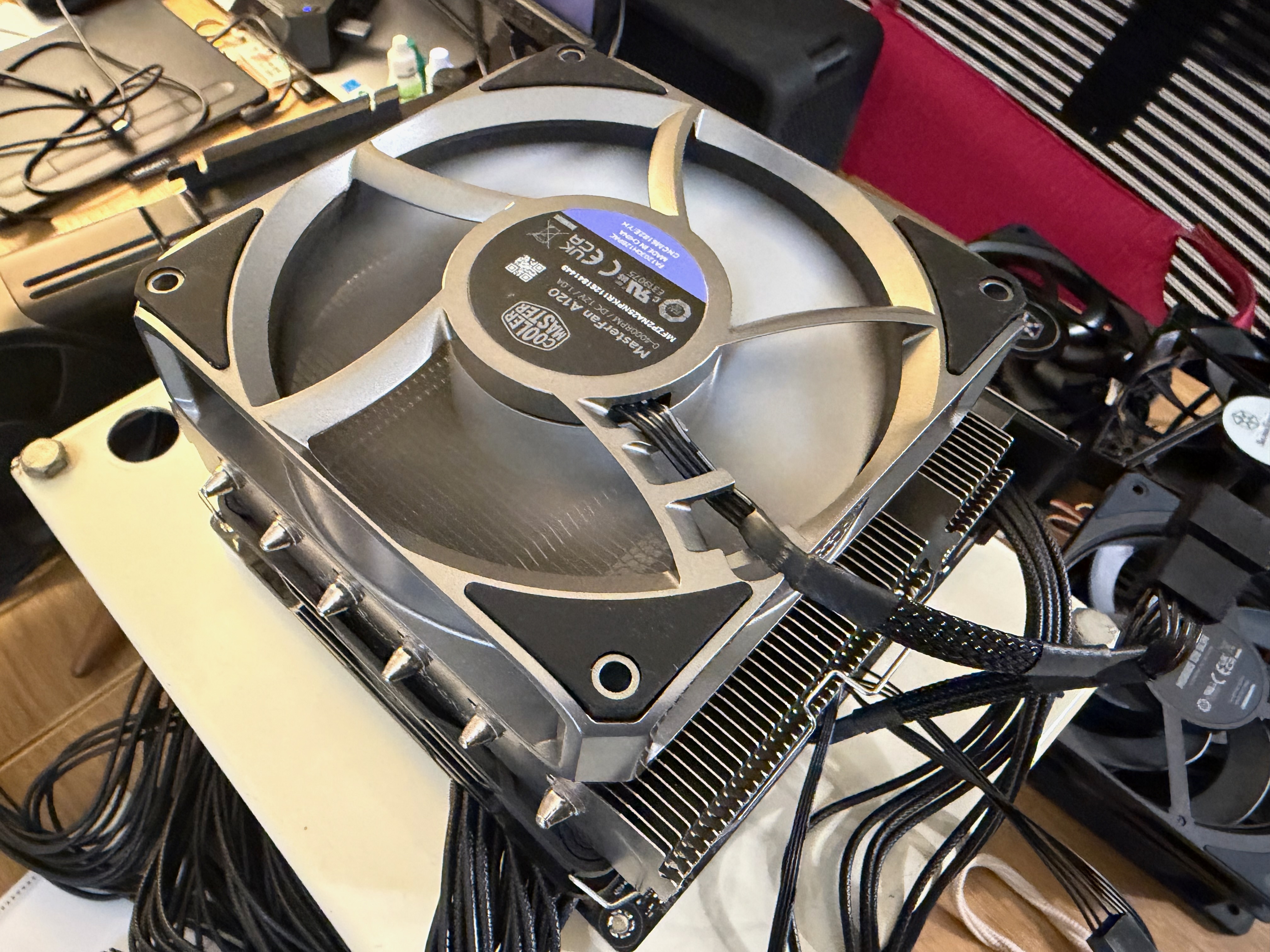

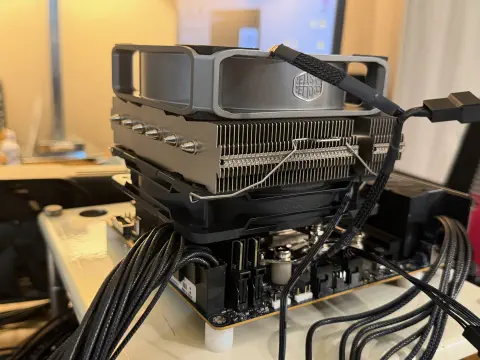

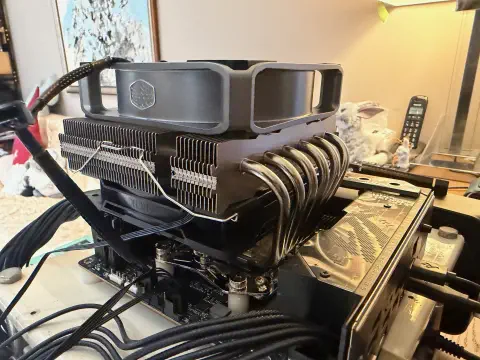

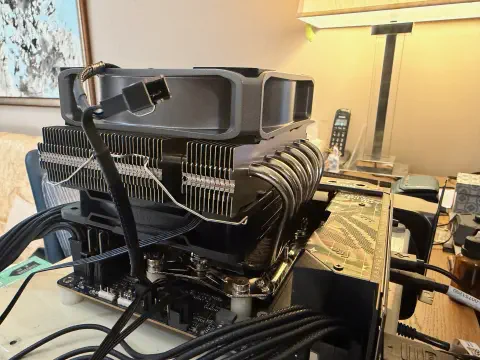

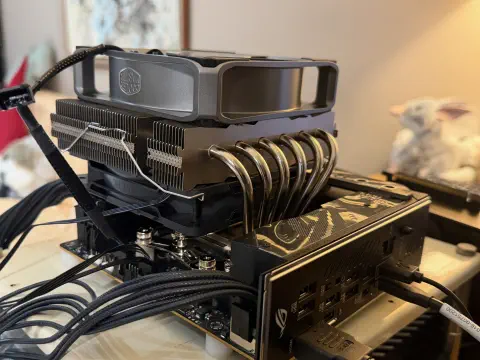

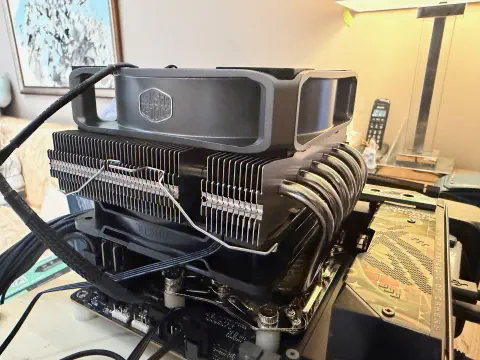

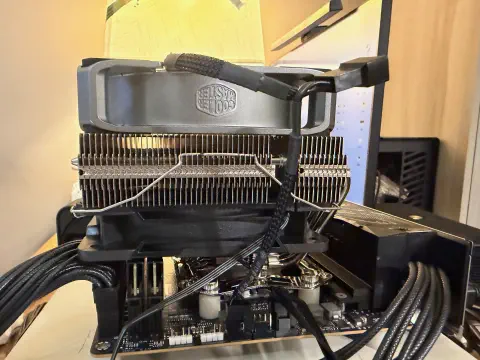

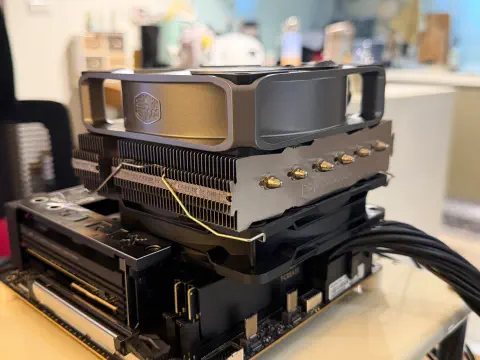

SilverStone NT06 Pro V2 with ARCTIC P12 Pro＋Cooler Master MasterFan A120 (O009) test result photo.

Media IDM120Captured2026-06-26 16:56LicenseCC BY 4.0CreditTK LabView O009 →View original →
