O010 / UNIT X53G-01 / Open bench / 53mm
INDIVIDUAL TEST RECORD · O010 · UNIT X53G-01
FAN
Single fan · Stock fan
CPU PROFILEStock settings
The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.
MEASURED PERFORMANCE PROFILECompared within Open bench
Not enough data for a performance profileAt least three comparable measured metrics are required.
Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.
TEST CONDITIONSConditions saved per record
- Test ID
- O010
- Cooler ID
- X53G-01
- Test time
- 2026-07-02, 12:08:40 (UTC+8)
- Height
- 53 mm
- Environment
- Open bench
- CPU operating profile
- Stock settings
- Fan
- CPU
- Ryzen 9 9950X3D
- Ambient
- 28°C
- PWM
- 100%
- Thermal paste
- ARCTIC MX-4
S5M COMPONENT TEMPERATURES
Component temperatures
Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.
Still warming at the endMaximum late-run sensor slope was 0.51°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
- SoC VRM Avg
- 63.3°C
- MISC VRM Avg
- 67.7°C
- SSD Avg
- 47.8°C
- CPU_FAN Avg
- 2,686.2 RPM
- Sampling window
- Final five minutes of AIDA64
- GPU load
- No GPU stress load
- Panel / duct
- Documented
INSTALLATION PHOTOS
Installation photos
01 / 02

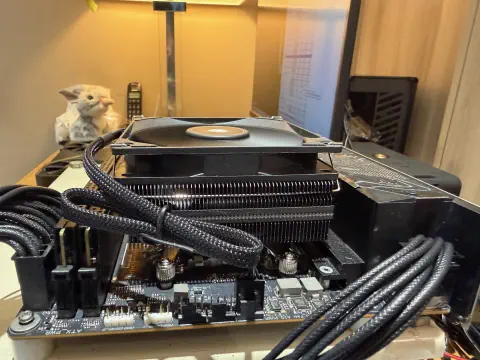

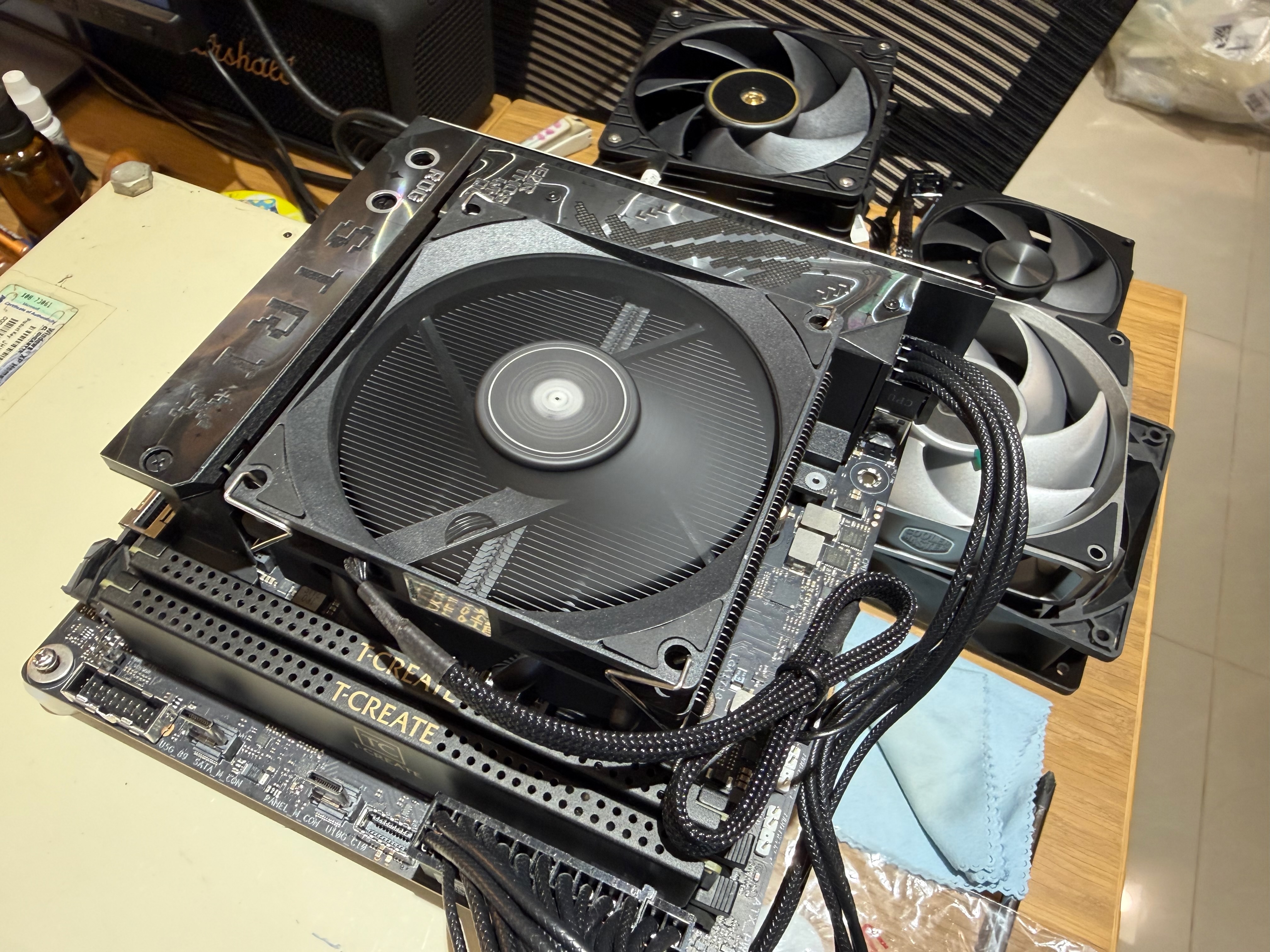

AXP90-X53 FULL BLACK with Thermalright TL-9015B EXTREM PWM (O014) installation photo.
