O025 / UNIT X53N-01 / Open bench / 68mm

INDIVIDUAL TEST RECORD · O025 · UNIT X53N-01

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 ScoreN/ANo ranking data
R23 Sustained Power174.7WOpen bench · #49 / 76
AIDA64 Heat Dissipation174.7WOpen bench · #33 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 SustainedLast-five-minute average power
    174.7 W#49 of 76 · P37
  2. 02
    AIDA64 CoolingLast-five-minute heat dissipation
    174.7 W#33 of 75 · P57
  3. 03
    Cooling per HeightAIDA64 cooling divided by total height
    2.57 W/mm#49 of 75 · P36

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O025
Cooler ID
X53N-01
Test time
2026-07-03, 12:17:48 (UTC+8)
Height
68 mm
Environment
Open bench
Installation note
The VRM heatsink was removed for this installation to avoid motherboard interference.
CPU operating profile
Stock settings
Fan
Fan adapter
XTIA 92 mm-to-120 mm fan adapter (for AXP90)
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM74°CMax 74°C
Motherboard42°CFinal-five-minute average
DIMM38.4°CMax 38.5°C
Chipset71°CFinal-five-minute average
Steady state reachedMaximum late-run sensor slope was 0°C/min. The direction of change is useful, but exact deltas remain provisional.
Test-condition noteThe heat-pipe ends of this cooler interfere with the test motherboard's VRM heatsink, so the VRM heatsink was removed for these runs. The VRM and nearby components therefore lack their normal passive cooling; the reported temperatures may be higher and are for observation only, not for direct comparison with tests that retained the VRM heatsink.
Full component-sensor data and conditions
SoC VRM Avg
57°C
MISC VRM Avg
60°C
SSD Avg
39.6°C
CPU_FAN Avg
2,525.7 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

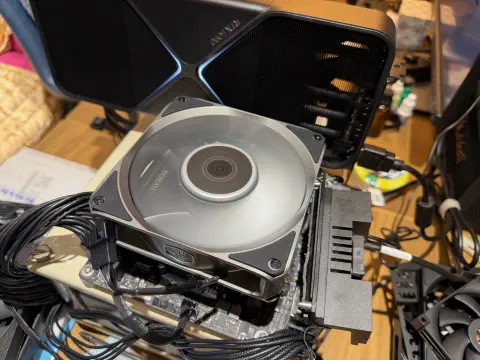

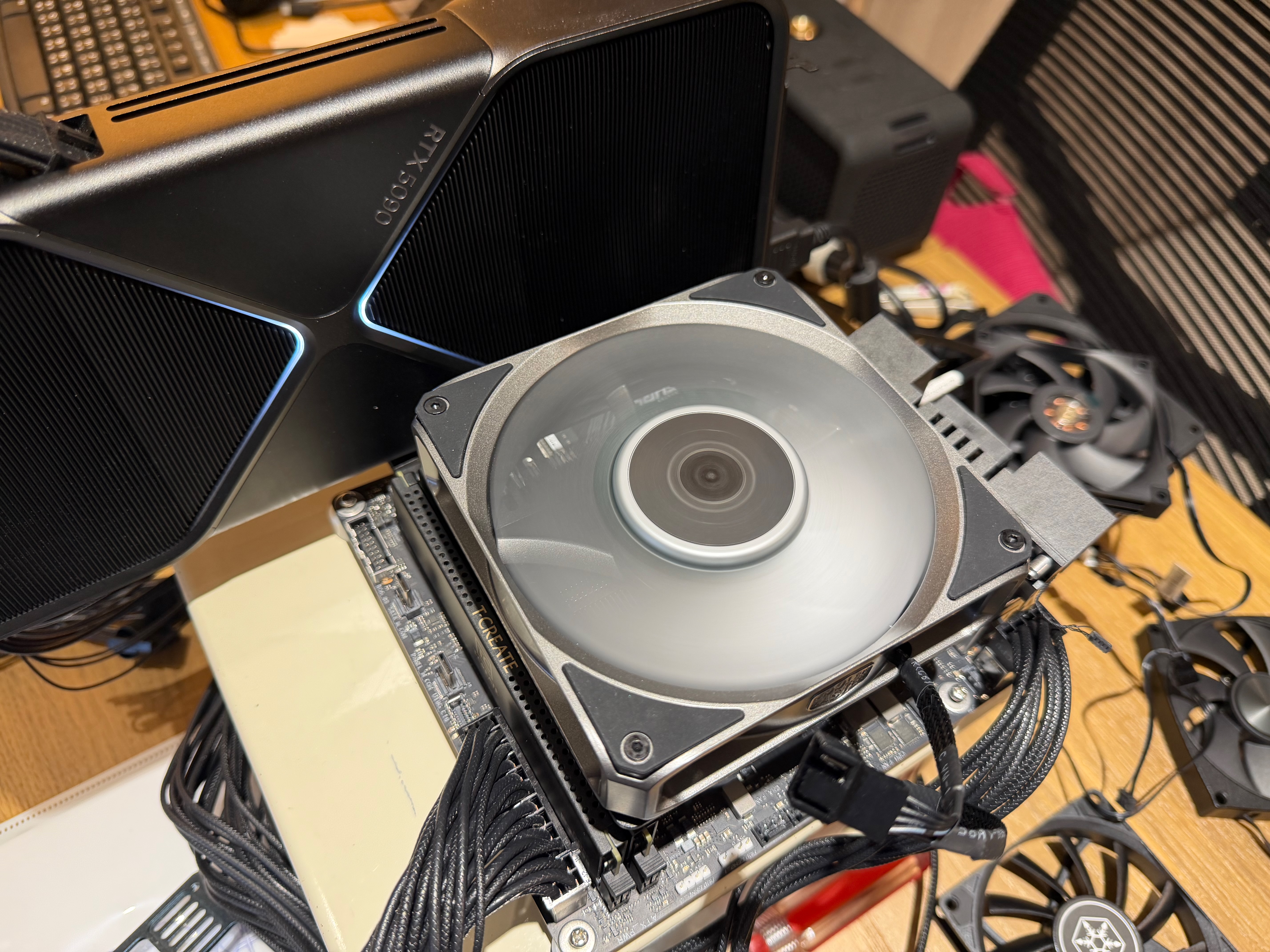

INSTALLATION PHOTOS

Installation photos

2 media items
