O047 / UNIT BR-01 / Open bench / 64mm
INDIVIDUAL TEST RECORD · O047 · UNIT BR-01
FAN 01
Lower fan
FAN 02
Upper fan
CPU PROFILEStock settings
The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.
MEASURED PERFORMANCE PROFILECompared within Open bench
01020304
CENTER 0 · OUTER RING P100- 01R23 ScoreMulti-core score39,722 pts#20 of 65 · P71
- 02R23 SustainedLast-five-minute average power196 W#13 of 76 · P84
- 03AIDA64 CoolingLast-five-minute heat dissipation192.1 W#7 of 75 · P92
- 04Cooling per HeightAIDA64 cooling divided by total height3 W/mm#20 of 75 · P75
Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.
TEST CONDITIONSConditions saved per record
- Test ID
- O047
- Cooler ID
- BR-01
- Test time
- 2026-07-05, 14:24:44 (UTC+8)
- Height
- 64 mm
- Environment
- Open bench
- CPU operating profile
- Stock settings
- Fan configuration
- CPU
- Ryzen 9 9950X3D
- Ambient
- 28°C
- PWM
- 100%
- Thermal paste
- ARCTIC MX-4
S5M COMPONENT TEMPERATURES
Component temperatures
Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.
Still warming at the endMaximum late-run sensor slope was 0.51°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
- SoC VRM Avg
- 51.5°C
- MISC VRM Avg
- 52.4°C
- SSD Avg
- 39.7°C
- CPU_FAN Avg
- 5,226.4 RPM
- Sampling window
- Final five minutes of AIDA64
- GPU load
- No GPU stress load
- Panel / duct
- Documented
INSTALLATION PHOTOS
Installation photos
01 / 07

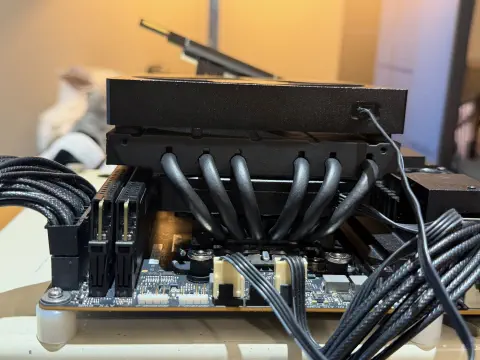

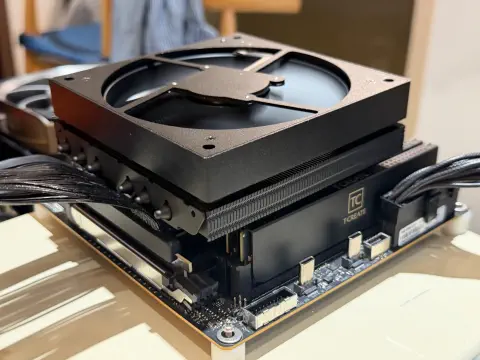

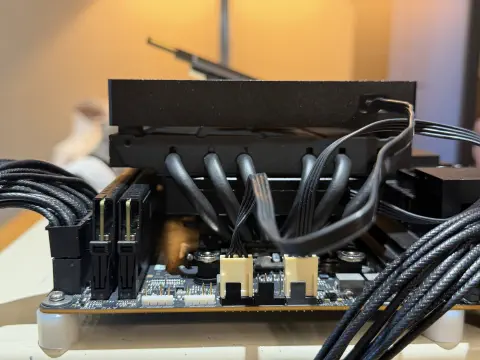

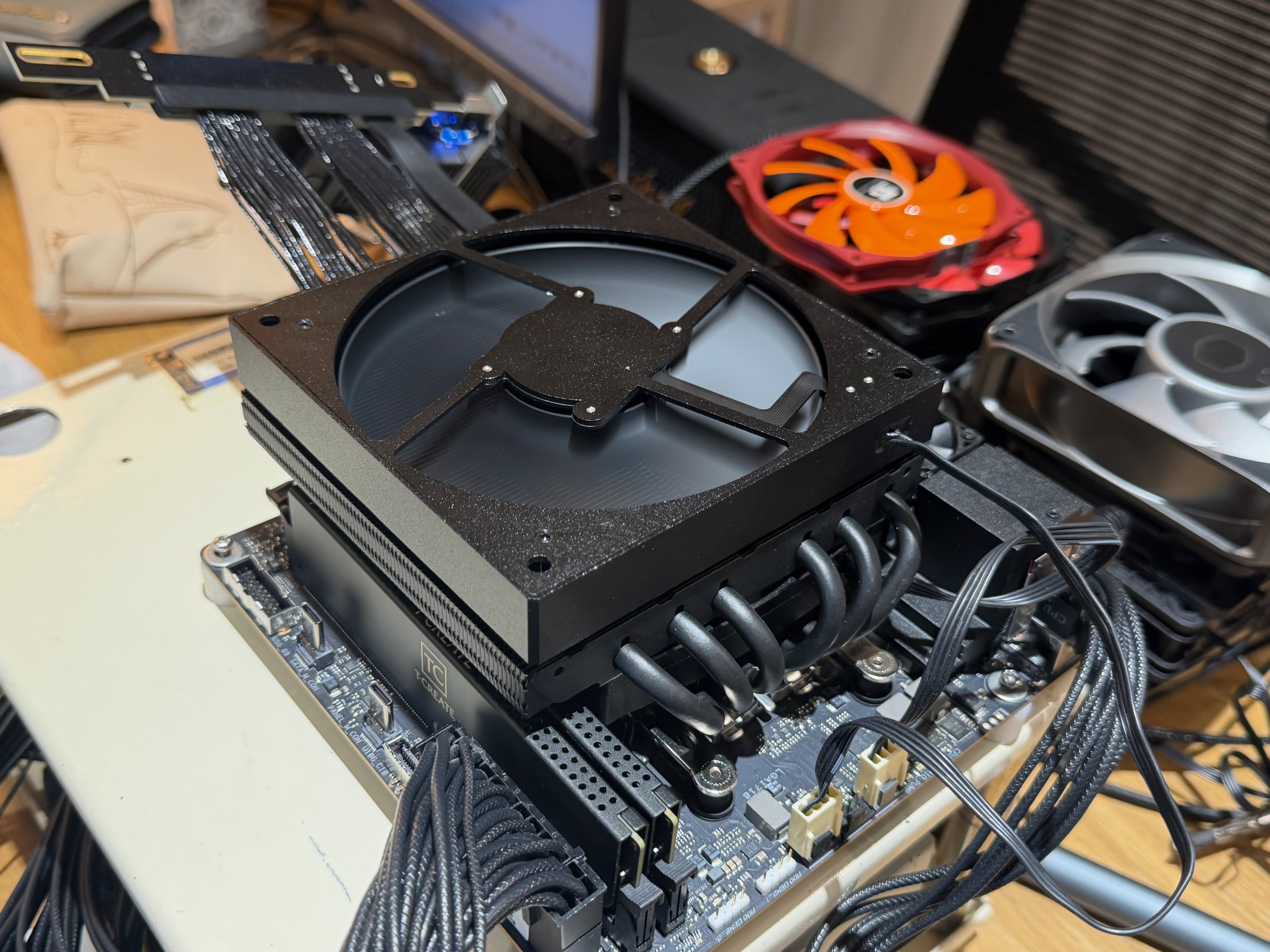

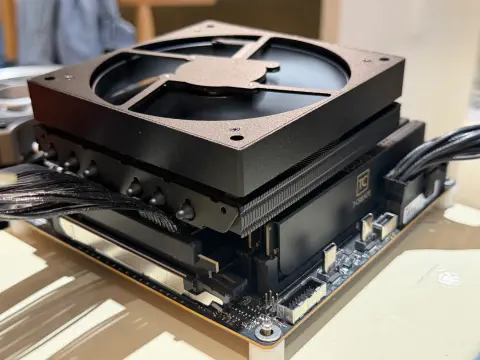

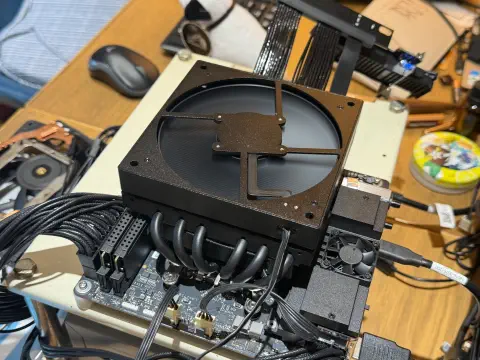

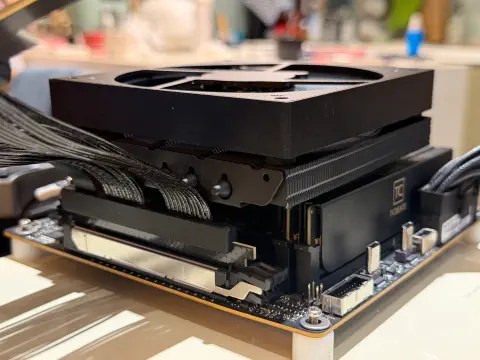

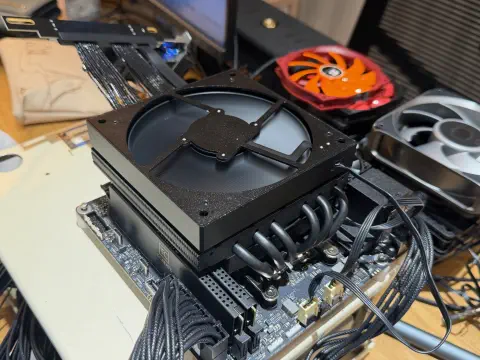

Alpenfohn Black Ridge with 4070＋4090 (O047) installation photo.
