O048 / UNIT BR-01 / Open bench / 77mm

INDIVIDUAL TEST RECORD · O048 · UNIT BR-01

FAN 01
Lower fan
FAN 02
Upper fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score40,369ptsOpen bench · #6 / 65
R23 Sustained Power195.4WOpen bench · #18 / 76
AIDA64 Heat Dissipation192.9WOpen bench · #6 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    40,369 pts#6 of 65 · P92
  2. 02
    R23 SustainedLast-five-minute average power
    195.4 W#18 of 76 · P78
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    192.9 W#6 of 75 · P93
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.51 W/mm#54 of 75 · P29

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O048
Cooler ID
BR-01
Test time
2026-07-05, 14:49:04 (UTC+8)
Height
77 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan configuration
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM62°CMax 62°C
Motherboard33.9°CFinal-five-minute average
DIMM35.6°CMax 36°C
Chipset57.1°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.57°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
51.1°C
MISC VRM Avg
53.6°C
SSD Avg
42.7°C
CPU_FAN Avg
5,307.8 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

INSTALLATION PHOTOS

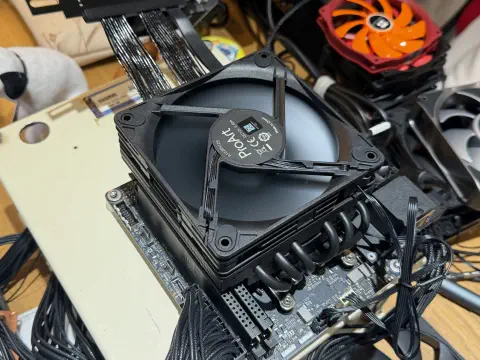

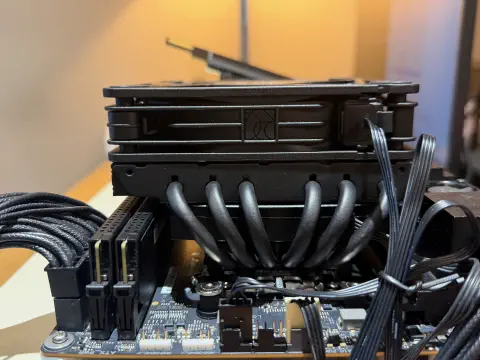

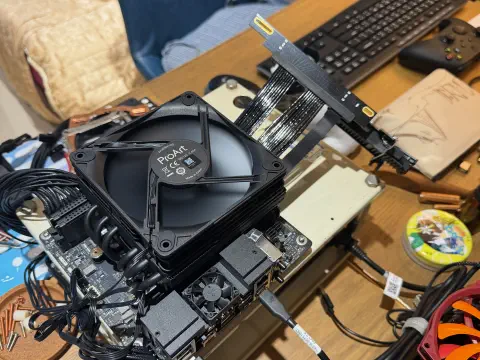

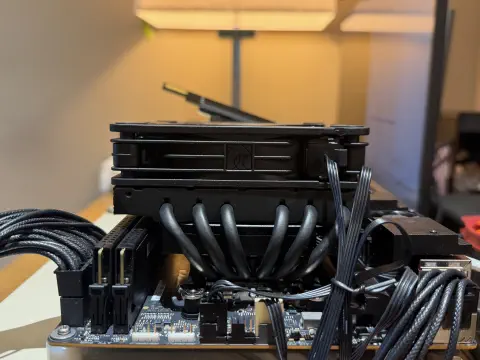

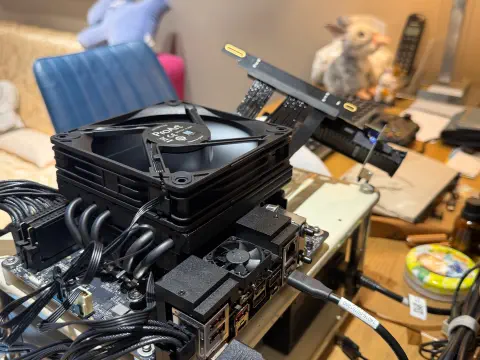

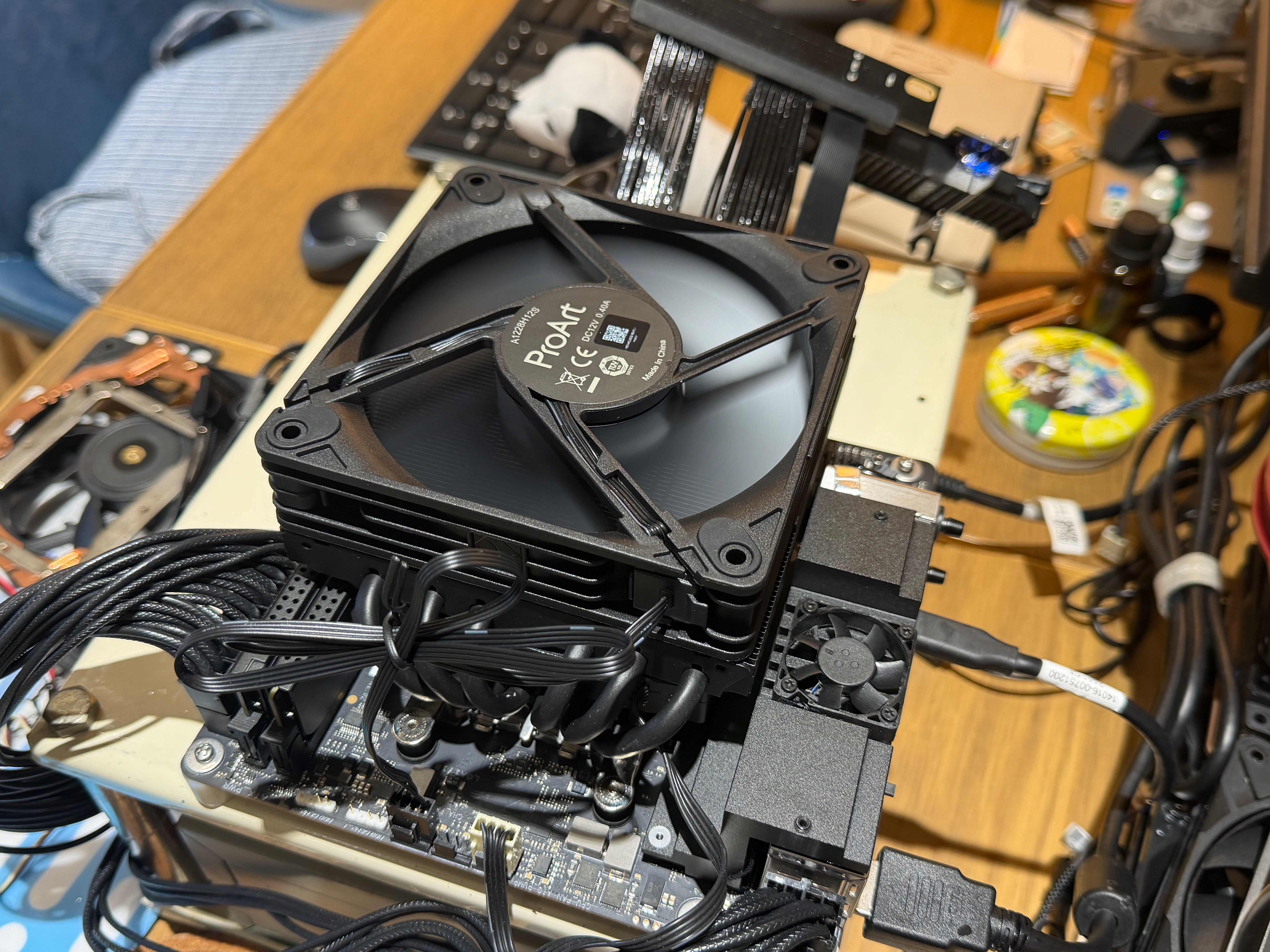

Installation photos

6 media items
