O050 / UNIT BR-01 / Open bench / 85mm
INDIVIDUAL TEST RECORD · O050 · UNIT BR-01
FAN 01
Lower fan
FAN 02
Upper fan
CPU PROFILEPBO / unlocked power limitsPPT 230W / TDC 175A / EDC 230A
The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.
MEASURED PERFORMANCE PROFILECompared within Open bench
Not enough data for a performance profileAt least three comparable measured metrics are required.
Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.
TEST CONDITIONSConditions saved per record
- Test ID
- O050
- Cooler ID
- BR-01
- Test time
- 2026-07-05, 15:55:15 (UTC+8)
- Height
- 85 mm
- Environment
- Open bench
- CPU operating profile
- PBO / unlocked power limits
- PBO limits (PPT / TDC / EDC)
- PPT 230W / TDC 175A / EDC 230A
- Fan configuration
- CPU
- Ryzen 9 9950X3D
- Ambient
- 28°C
- PWM
- 100%
- Thermal paste
- ARCTIC MX-4
S5M COMPONENT TEMPERATURES
Component temperatures
Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.
Still warming at the endMaximum late-run sensor slope was 0.2°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
- SoC VRM Avg
- 52°C
- MISC VRM Avg
- 53.6°C
- SSD Avg
- 39.7°C
- CPU_FAN Avg
- 5,288.2 RPM
- Sampling window
- Final five minutes of AIDA64
- GPU load
- No GPU stress load
- Panel / duct
- Documented
INSTALLATION PHOTOS
Installation photos
01 / 03

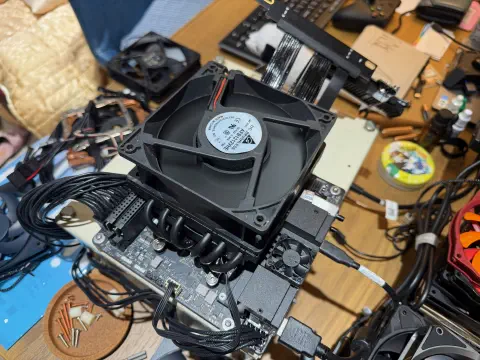

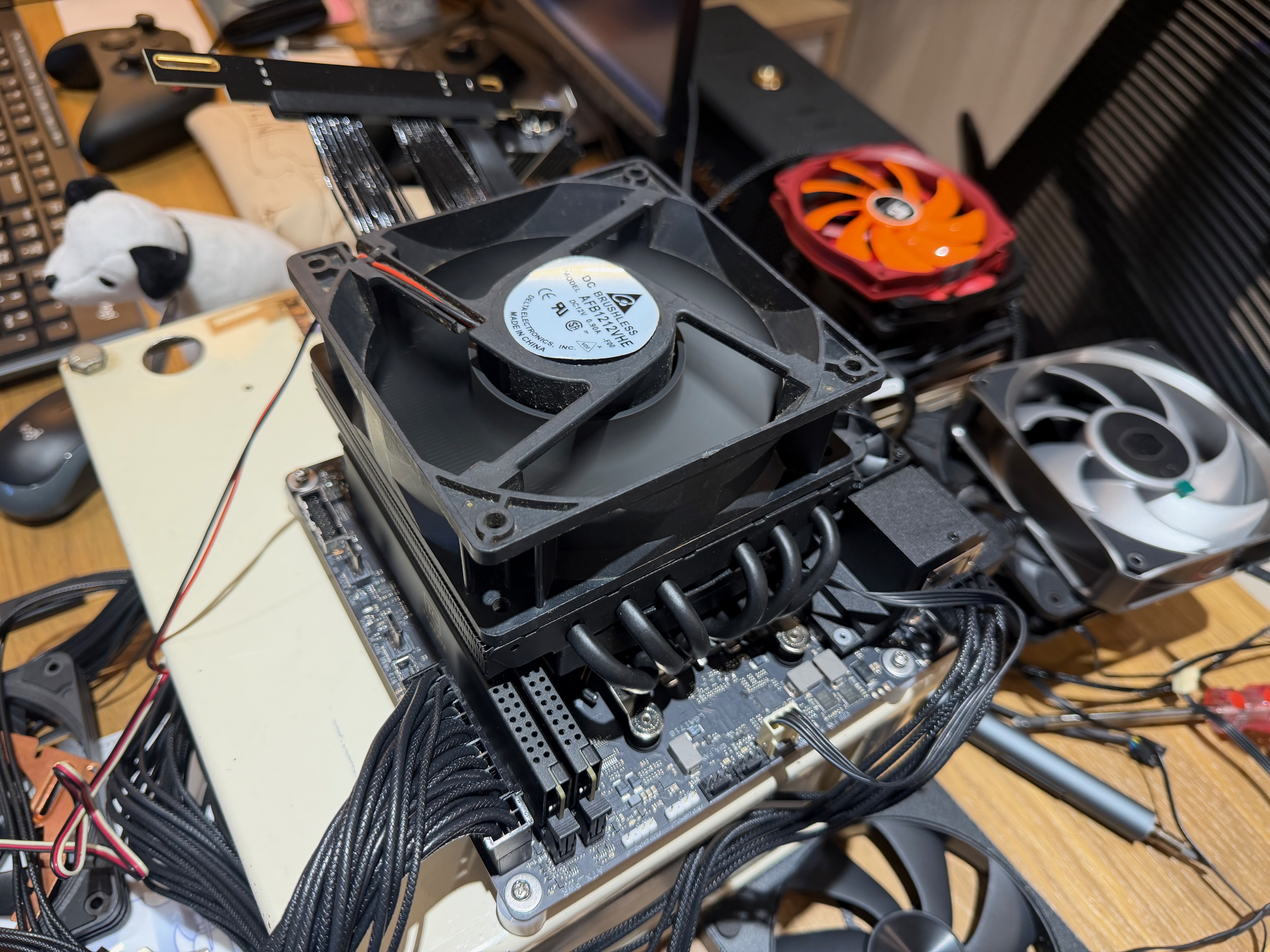

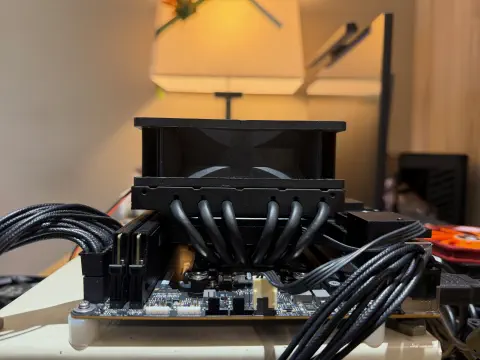

Alpenfohn Black Ridge with 4070 GPU 改裝扇＋Delta AFB1212VHE-F00 (O050) installation photo.
