O051 / UNIT AXP100G-01 / Open bench / 65mm

INDIVIDUAL TEST RECORD · O051 · UNIT AXP100G-01

FAN
Single fan · Stock fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score36,867ptsOpen bench · #56 / 65
R23 Sustained Power161.6WOpen bench · #63 / 76
AIDA64 Heat Dissipation155.7WOpen bench · #60 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    36,867 pts#56 of 65 · P15
  2. 02
    R23 SustainedLast-five-minute average power
    161.6 W#63 of 76 · P18
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    155.7 W#60 of 75 · P21
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.4 W/mm#59 of 75 · P23

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O051
Cooler ID
AXP100G-01
Test time
2026-07-04, 18:22:01 (UTC+8)
Height
65 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM70.4°CMax 71°C
Motherboard46.1°CFinal-five-minute average
DIMM48.3°CMax 49.5°C
Chipset79.5°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.5°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
57.7°C
MISC VRM Avg
66.5°C
SSD Avg
47.3°C
CPU_FAN Avg
2,361.5 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

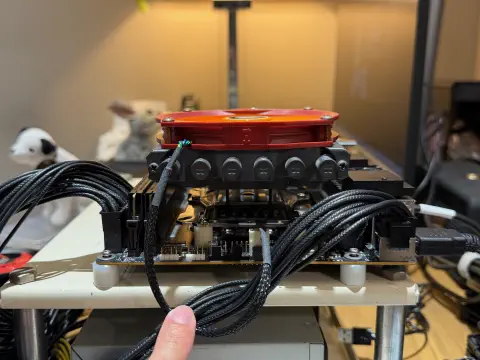

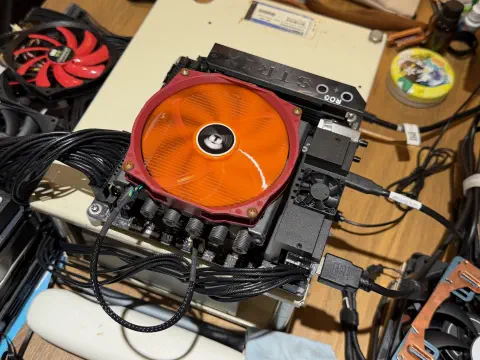

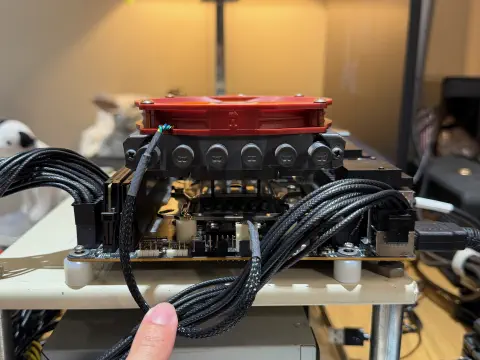

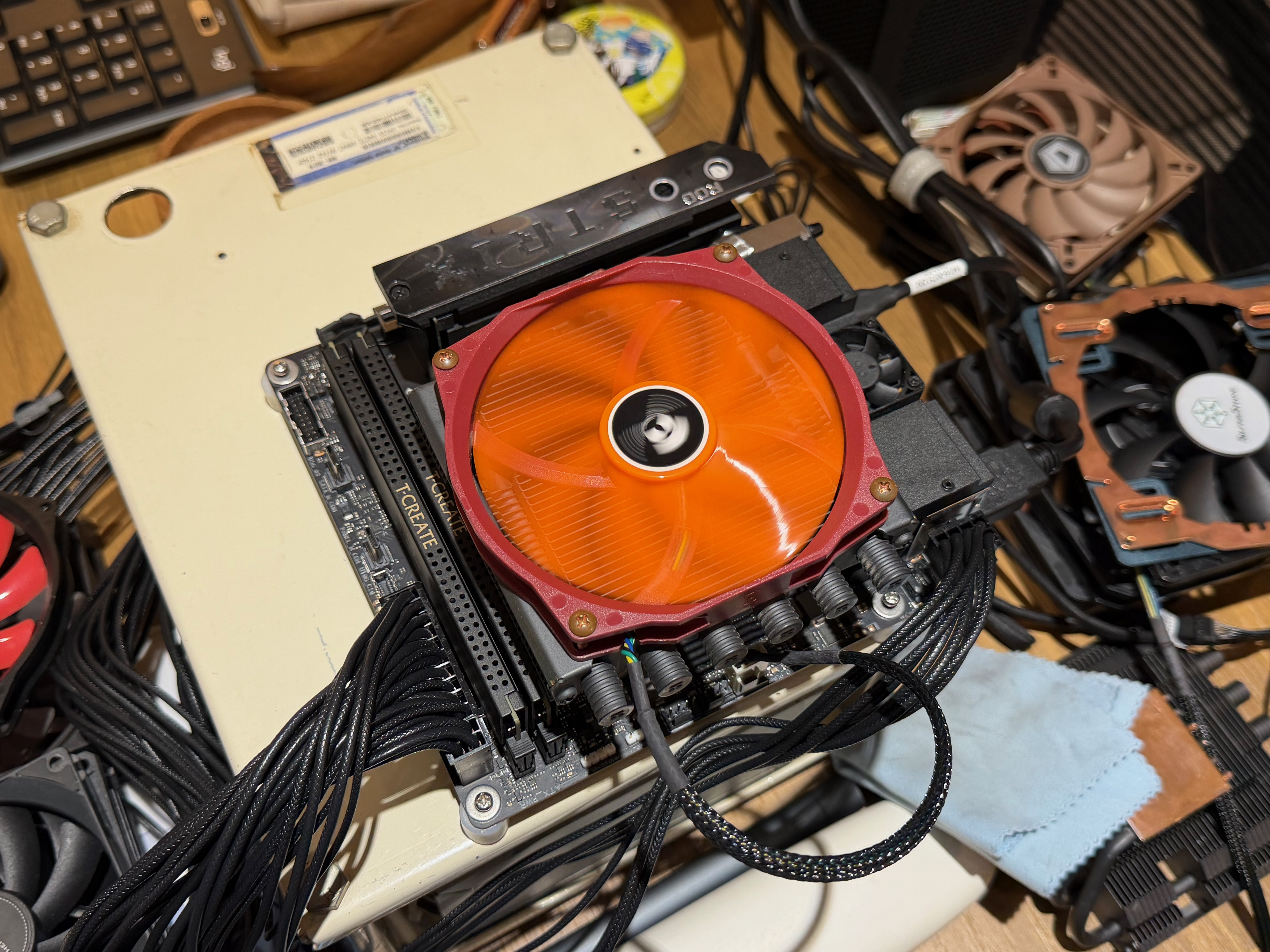

INSTALLATION PHOTOS

Installation photos

4 media items
