O057 / UNIT AXP100G-01 / Open bench / 80mm

INDIVIDUAL TEST RECORD · O057 · UNIT AXP100G-01

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score39,508ptsOpen bench · #24 / 65
R23 Sustained Power187.1WOpen bench · #35 / 76
AIDA64 Heat Dissipation174.5WOpen bench · #35 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    39,508 pts#24 of 65 · P65
  2. 02
    R23 SustainedLast-five-minute average power
    187.1 W#35 of 76 · P55
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    174.5 W#35 of 75 · P55
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.18 W/mm#71 of 75 · P7

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O057
Cooler ID
AXP100G-01
Test time
2026-07-04, 22:54:10 (UTC+8)
Height
80 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
Fan adapter
Thermalright AXP100 factory 90 mm-to-120 mm fan adapter
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM66.1°CMax 66.9°C
Motherboard39°CFinal-five-minute average
DIMM40.3°CMax 40.8°C
Chipset70.3°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.19°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
52°C
MISC VRM Avg
60.2°C
SSD Avg
40°C
CPU_FAN Avg
2,513.1 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

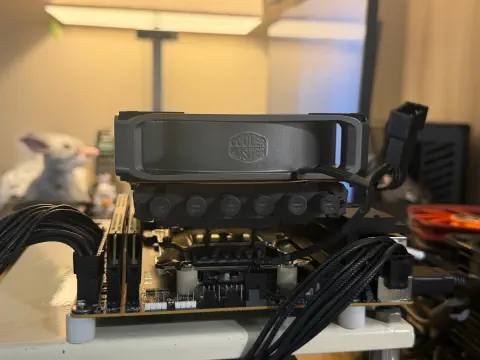

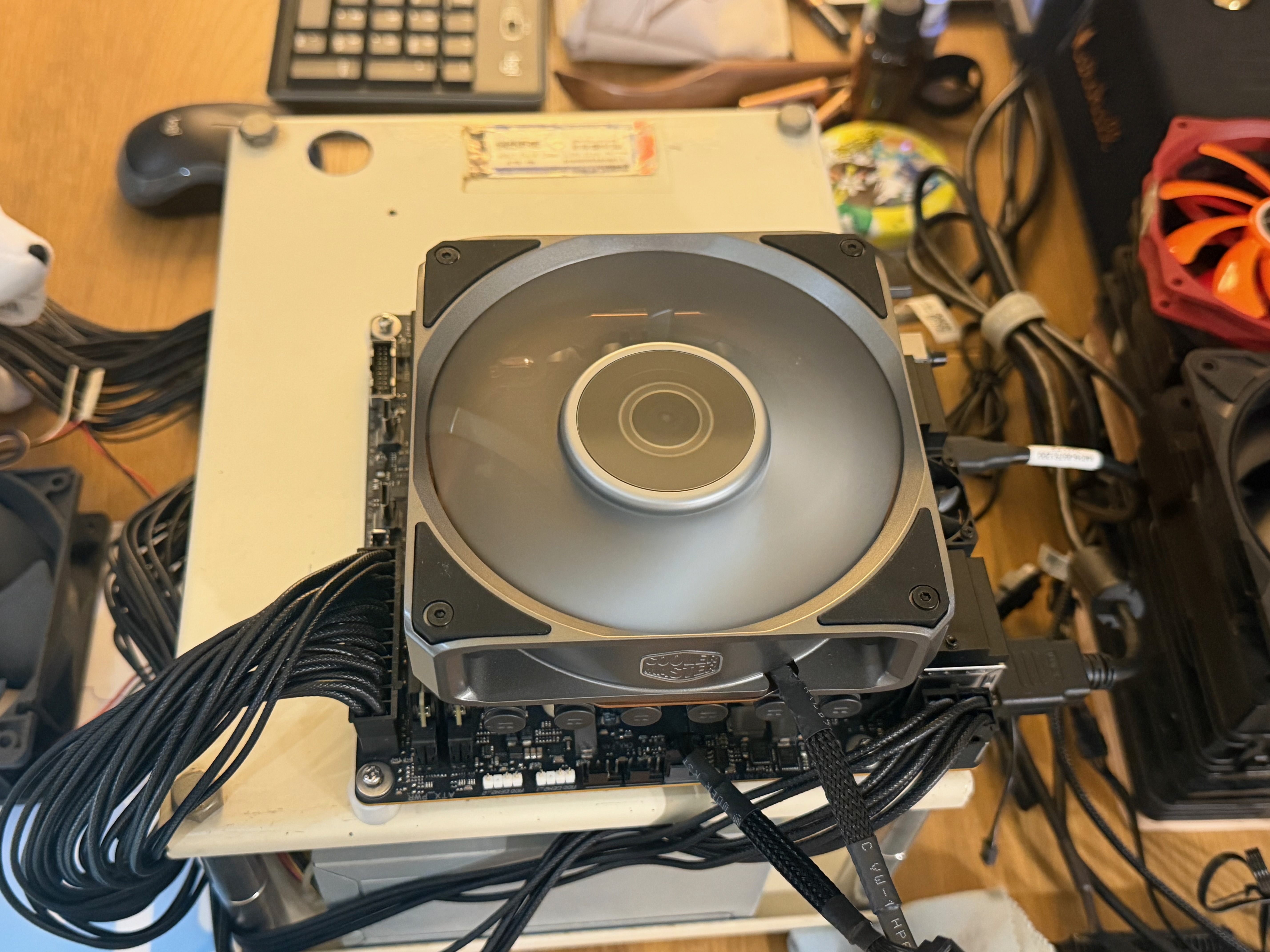

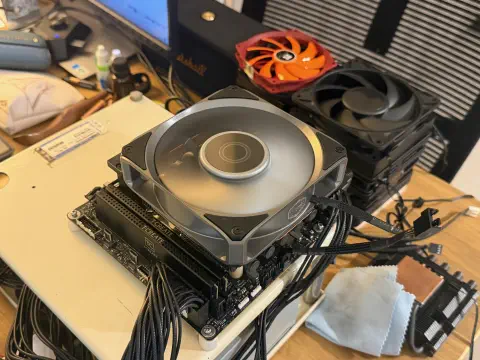

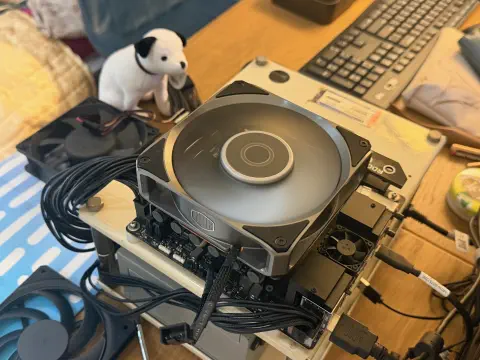

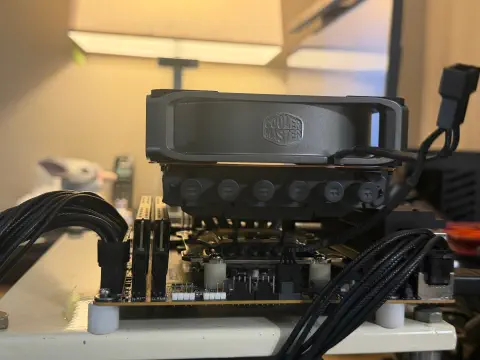

INSTALLATION PHOTOS

Installation photos

5 media items
