O058 / UNIT AXP100G-01 / Open bench / 65mm

INDIVIDUAL TEST RECORD · O058 · UNIT AXP100G-01

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score37,468ptsOpen bench · #53 / 65
R23 Sustained Power168.8WOpen bench · #54 / 76
AIDA64 Heat Dissipation159.2WOpen bench · #57 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    37,468 pts#53 of 65 · P20
  2. 02
    R23 SustainedLast-five-minute average power
    168.8 W#54 of 76 · P30
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    159.2 W#57 of 75 · P25
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.45 W/mm#57 of 75 · P25

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O058
Cooler ID
AXP100G-01
Test time
2026-07-04, 23:28:20 (UTC+8)
Height
65 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
Fan adapter
Thermalright AXP100 factory 90 mm-to-120 mm fan adapter
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM69.7°CMax 70.3°C
Motherboard44°CFinal-five-minute average
DIMM45.9°CMax 47°C
Chipset76.8°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.44°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
56.4°C
MISC VRM Avg
64.9°C
SSD Avg
45°C
CPU_FAN Avg
2,402.4 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

INSTALLATION PHOTOS

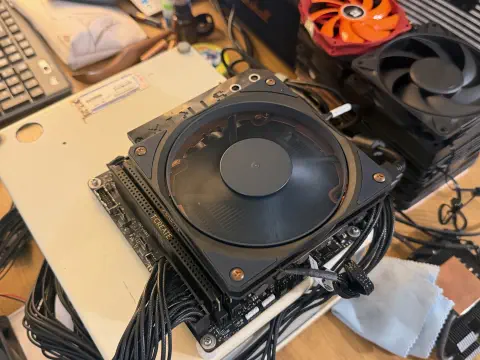

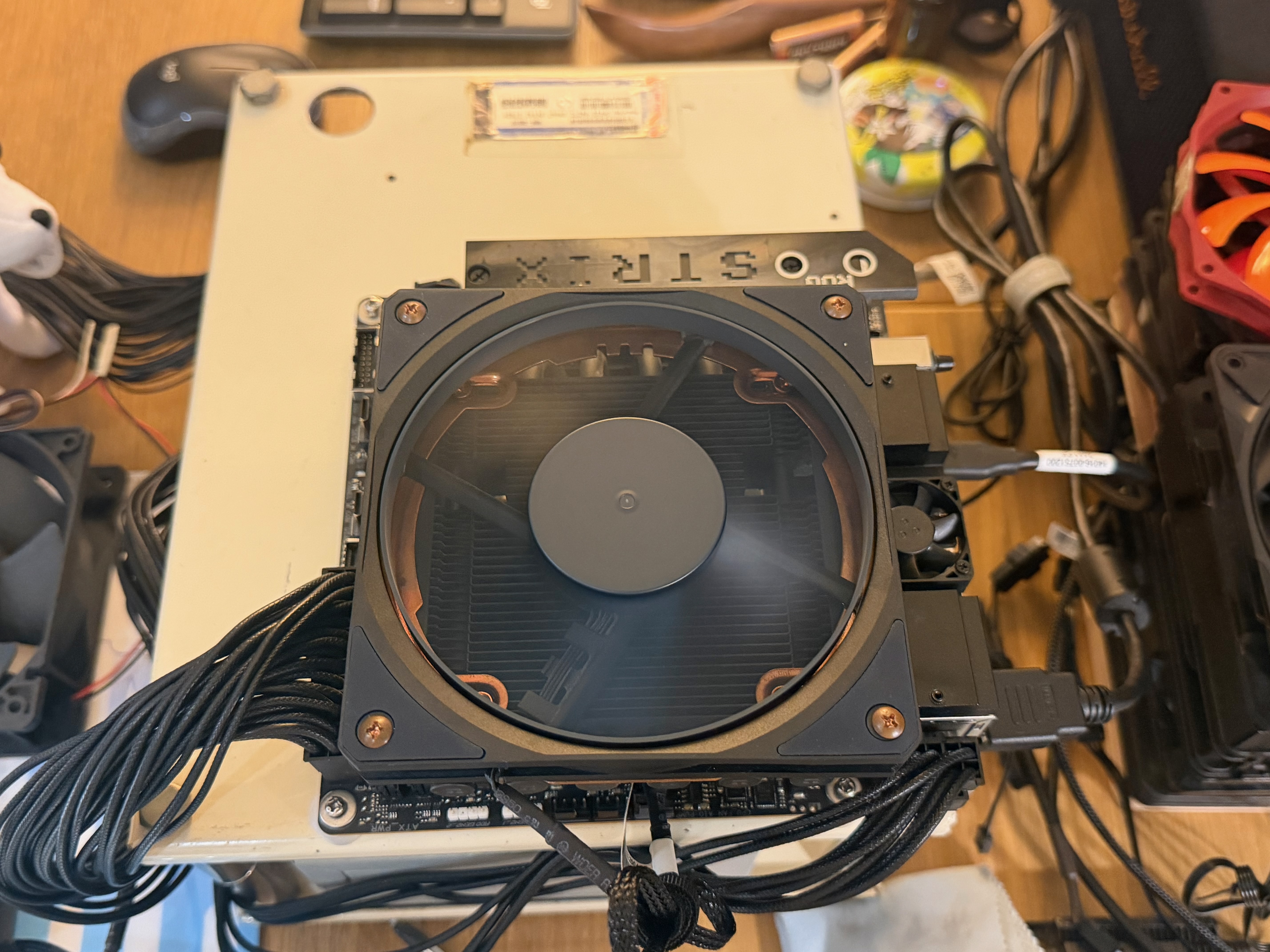

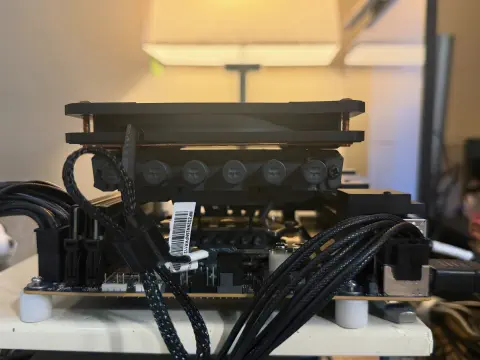

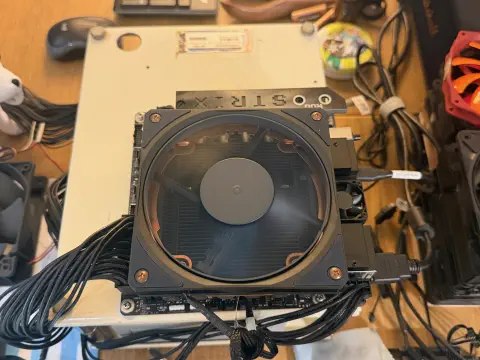

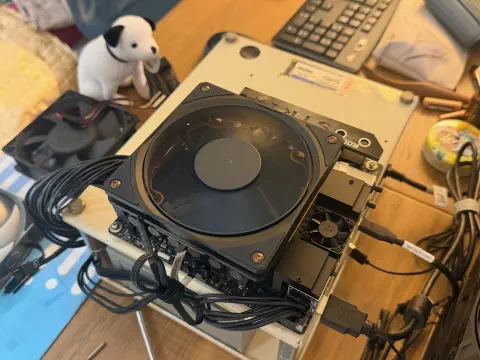

Installation photos

4 media items
