O059 / UNIT AXP100G-01 / Open bench / 88mm

INDIVIDUAL TEST RECORD · O059 · UNIT AXP100G-01

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score39,265ptsOpen bench · #33 / 65
R23 Sustained Power194.2WOpen bench · #24 / 76
AIDA64 Heat Dissipation181.9WOpen bench · #17 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    39,265 pts#33 of 65 · P51
  2. 02
    R23 SustainedLast-five-minute average power
    194.2 W#24 of 76 · P70
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    181.9 W#17 of 75 · P79
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.07 W/mm#73 of 75 · P4

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O059
Cooler ID
AXP100G-01
Test time
2026-07-05, 01:10:43 (UTC+8)
Height
88 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
Fan adapter
Thermalright AXP100 factory 90 mm-to-120 mm fan adapter
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM63.6°CMax 64°C
Motherboard35.2°CFinal-five-minute average
DIMM36.6°CMax 37.2°C
Chipset66.4°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.11°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
47°C
MISC VRM Avg
57°C
SSD Avg
36°C
CPU_FAN Avg
3,200 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

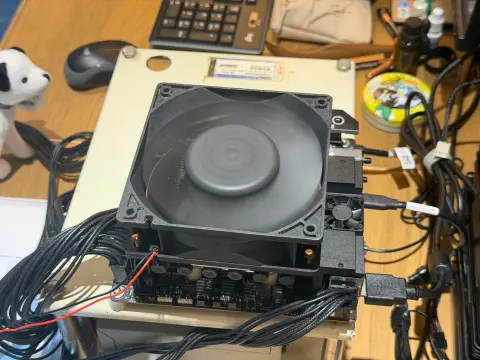

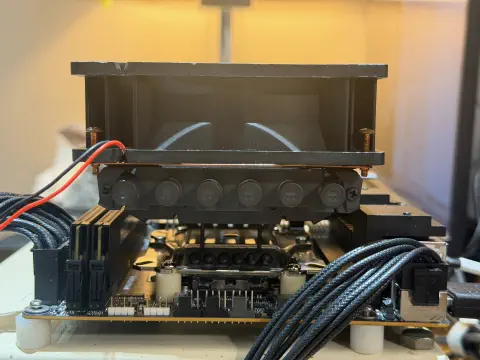

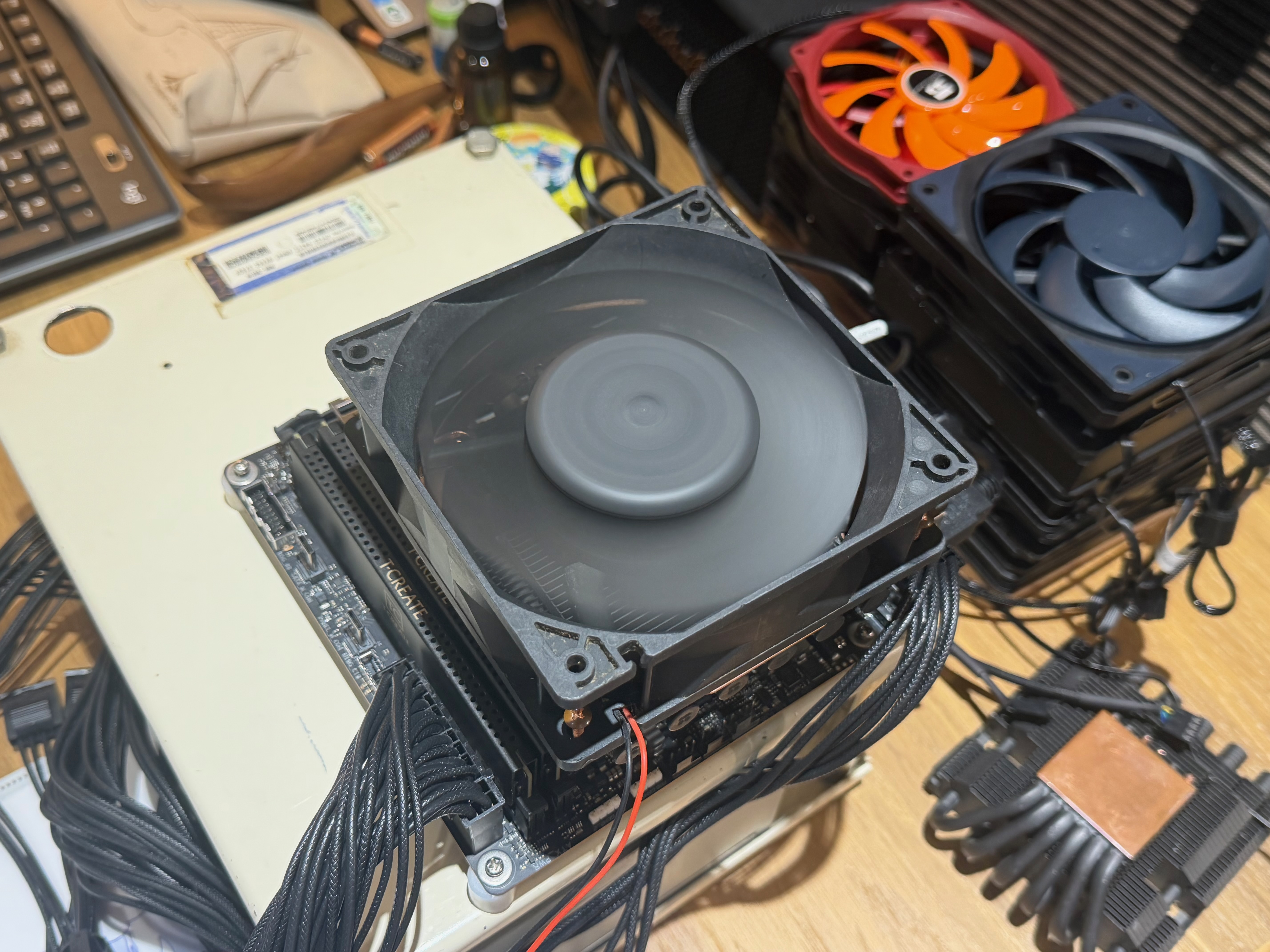

INSTALLATION PHOTOS

Installation photos

3 media items
