O062 / UNIT AM5M87-01 / Open bench / 64.5mm
INDIVIDUAL TEST RECORD · O062 · UNIT AM5M87-01
FAN
Single fan · Stock fan
CPU PROFILEStock settings
The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.
MEASURED PERFORMANCE PROFILECompared within Open bench
01020304
CENTER 0 · OUTER RING P100- 01R23 ScoreMulti-core score39,769 pts#19 of 65 · P72
- 02R23 SustainedLast-five-minute average power191.4 W#29 of 76 · P63
- 03AIDA64 CoolingLast-five-minute heat dissipation177.7 W#27 of 75 · P65
- 04Cooling per HeightAIDA64 cooling divided by total height2.76 W/mm#38 of 75 · P51
Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.
TEST CONDITIONSConditions saved per record
- Test ID
- O062
- Cooler ID
- AM5M87-01
- Test time
- 2026-07-02, 18:52:25 (UTC+8)
- Height
- 64.5 mm
- Environment
- Open bench
- CPU operating profile
- Stock settings
- Fan
- CPU
- Ryzen 9 9950X3D
- Ambient
- 28°C
- PWM
- 100%
- Thermal paste
- ARCTIC MX-4
S5M COMPONENT TEMPERATURES
Component temperatures
Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.
Still warming at the endMaximum late-run sensor slope was 0.3°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
- SoC VRM Avg
- 64°C
- MISC VRM Avg
- 67.5°C
- SSD Avg
- 32.7°C
- CPU_FAN Avg
- 10,227 RPM
- Sampling window
- Final five minutes of AIDA64
- GPU load
- No GPU stress load
- Panel / duct
- Documented
PHOTOS / VIDEO
Installation photos
VIDEO
Coolserver AM5-M87 with SY.TECH F6025UD12B-P20 (O062) installation video.
01 / 03

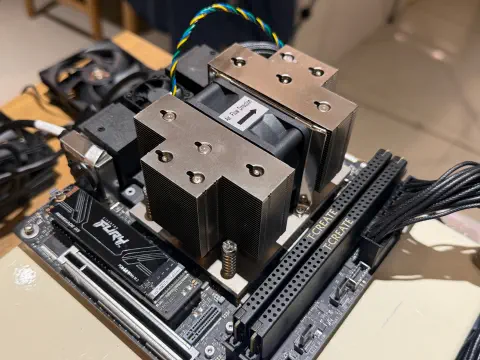

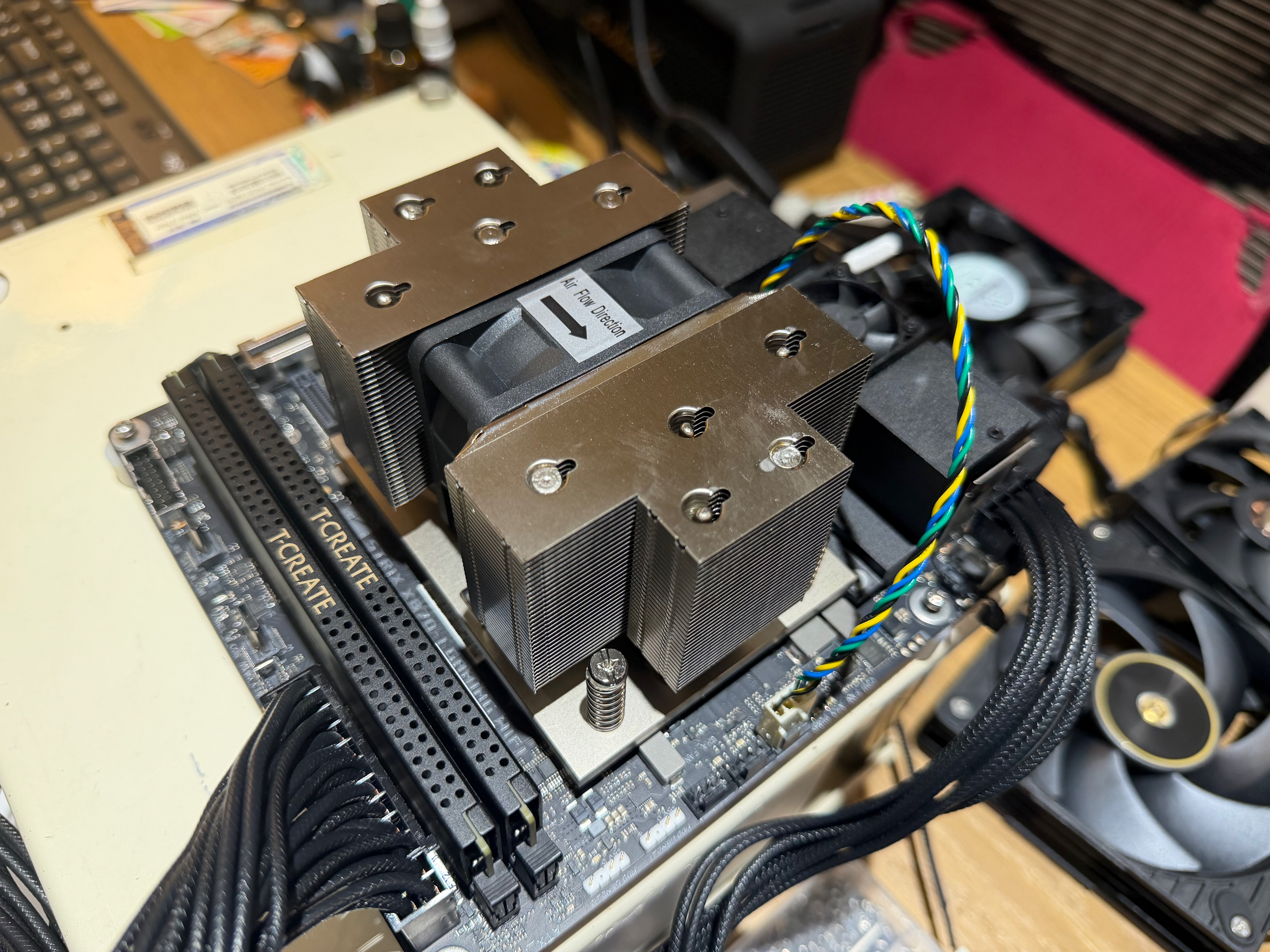

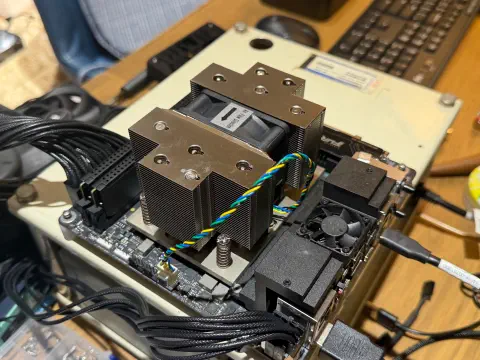

Coolserver AM5-M87 with SY.TECH F6025UD12B-P20 (O062) installation photo.
