O067 / UNIT AN400-01 / Open bench / 67mm
INDIVIDUAL TEST RECORD · O067 · UNIT AN400-01
FAN
Single fan
CPU PROFILEStock settings
The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.
MEASURED PERFORMANCE PROFILECompared within Open bench
01020304
CENTER 0 · OUTER RING P100- 01R23 ScoreMulti-core score37,058 pts#54 of 65 · P18
- 02R23 SustainedLast-five-minute average power166.3 W#56 of 76 · P28
- 03AIDA64 CoolingLast-five-minute heat dissipation154.1 W#61 of 75 · P20
- 04Cooling per HeightAIDA64 cooling divided by total height2.3 W/mm#68 of 75 · P11
Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.
TEST CONDITIONSConditions saved per record
- Test ID
- O067
- Cooler ID
- AN400-01
- Test time
- 2026-06-22, 13:08:35 (UTC+8)
- Height
- 67 mm
- Environment
- Open bench
- CPU operating profile
- Stock settings
- Fan
- Fan adapter
- No fan adapter was used; the fan was placed directly on the heatsink fin stack.
- CPU
- Ryzen 9 9950X3D
- Ambient
- 28°C
- PWM
- 100%
- Thermal paste
- ARCTIC MX-4
S5M COMPONENT TEMPERATURES
Component temperatures
Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.
Steady state reachedMaximum late-run sensor slope was 0°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
- SoC VRM Avg
- 54.1°C
- MISC VRM Avg
- 54°C
- SSD Avg
- 36°C
- CPU_FAN Avg
- 2,521 RPM
- Sampling window
- Final five minutes of AIDA64
- GPU load
- No GPU stress load
- Panel / duct
- Documented
INSTALLATION PHOTOS

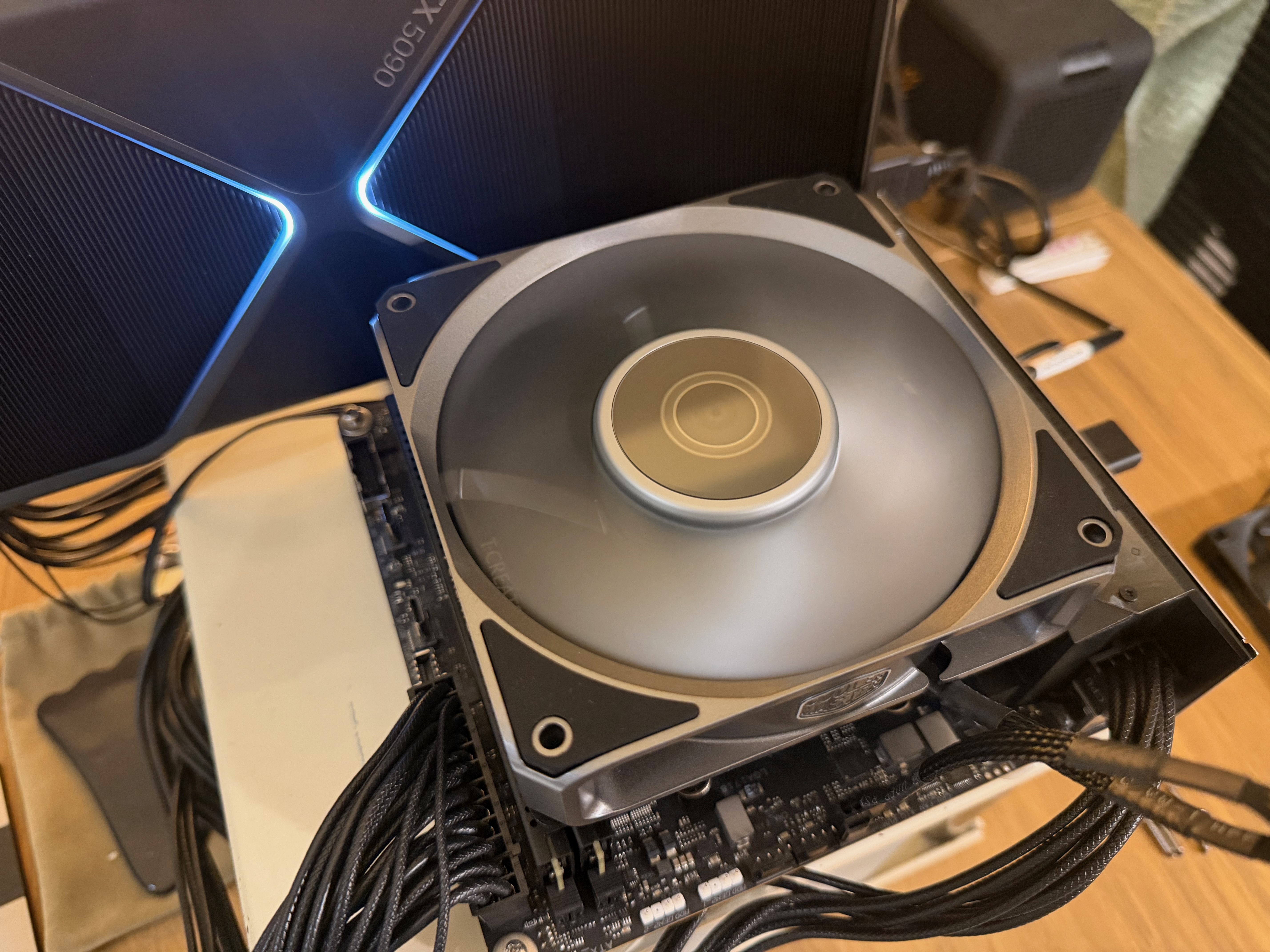

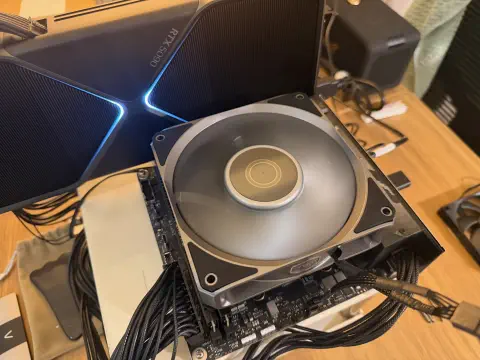

Installation photos
01 / 02
Product and installation detail from the TK Lab low-profile cooling database.
