O070 / UNIT IS60-01 / Open bench / 66mm

INDIVIDUAL TEST RECORD · O070 · UNIT IS60-01

FAN 01
Lower fan
FAN 02
Upper fan
CPU PROFILEPBO / unlocked power limitsPPT 230W; TDC / EDC unchanged

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score40,075ptsOpen bench · #10 / 65
R23 Sustained Power204WOpen bench · #7 / 76
AIDA64 Heat Dissipation186.7WOpen bench · #11 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    40,075 pts#10 of 65 · P86
  2. 02
    R23 SustainedLast-five-minute average power
    204 W#7 of 76 · P92
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    186.7 W#11 of 75 · P87
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.83 W/mm#31 of 75 · P60

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O070
Cooler ID
IS60-01
Test time
2026-07-06, 12:52:32 (UTC+8)
Height
66 mm
Environment
Open bench
CPU operating profile
PBO / unlocked power limits
PBO limits (PPT / TDC / EDC)
PPT 230W; TDC / EDC unchanged
Fan configuration
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM63.9°CMax 64°C
Motherboard35.3°CFinal-five-minute average
DIMM36.5°CMax 37°C
Chipset68°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.24°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
47.7°C
MISC VRM Avg
57.7°C
SSD Avg
36.5°C
CPU_FAN Avg
5,262 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

PHOTOS / VIDEO

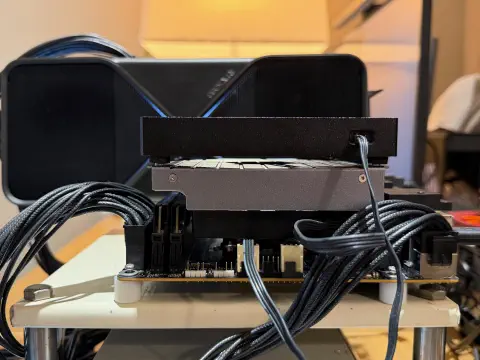

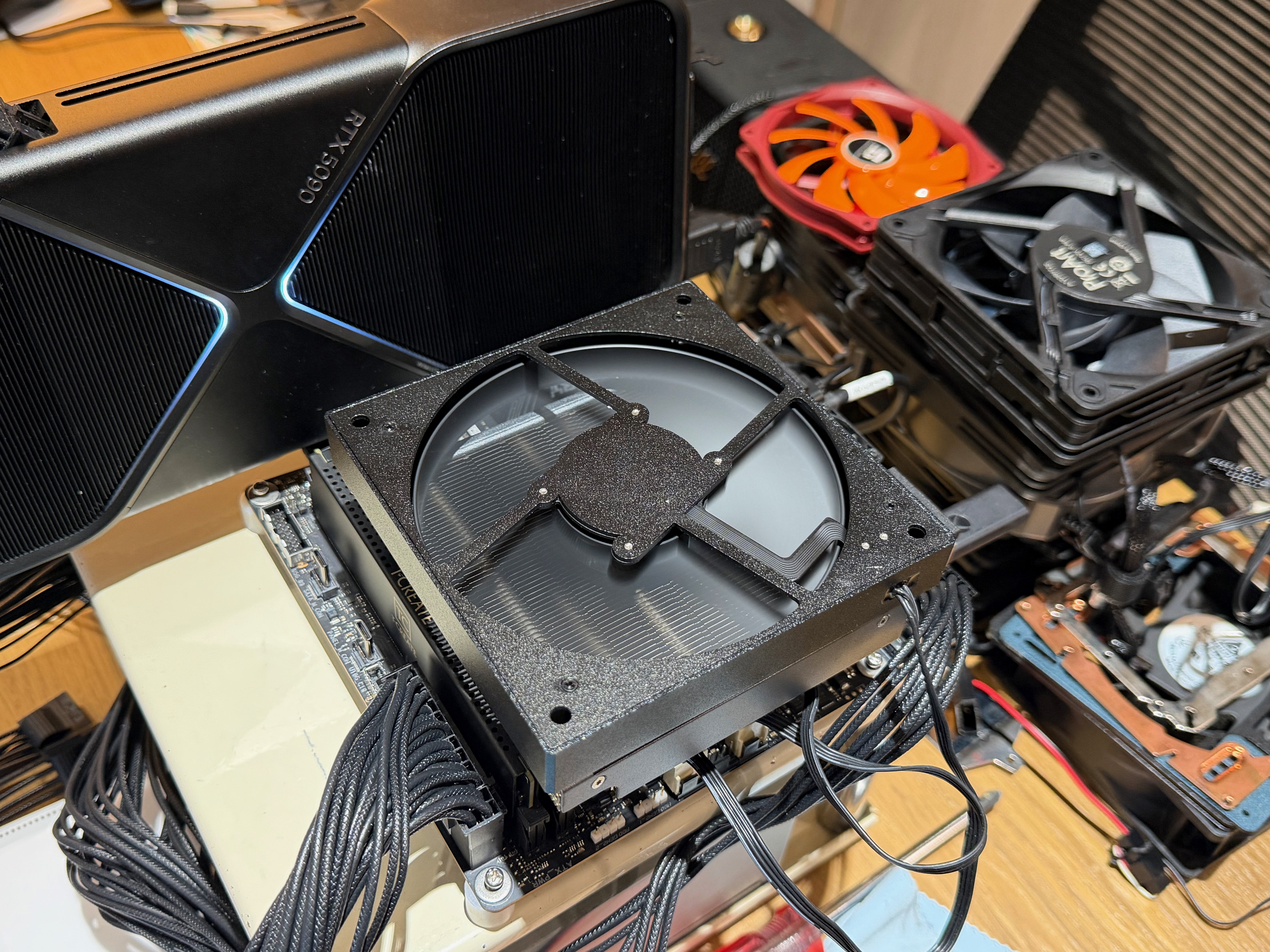

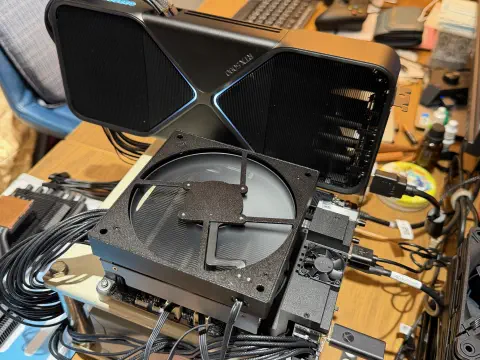

Installation photos

4 media items
