O073 / UNIT AXP100G-02 / Open bench / 80mm

INDIVIDUAL TEST RECORD · O073 · UNIT AXP100G-02

FAN
Single fan
CPU PROFILEPBO / unlocked power limitsPPT 230W / TDC 175A / EDC 230A

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score40,254ptsOpen bench · #7 / 65
R23 Sustained Power207.8WOpen bench · #6 / 76
AIDA64 Heat Dissipation190.5WOpen bench · #9 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    40,254 pts#7 of 65 · P91
  2. 02
    R23 SustainedLast-five-minute average power
    207.8 W#6 of 76 · P93
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    190.5 W#9 of 75 · P89
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.38 W/mm#60 of 75 · P21

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O073
Cooler ID
AXP100G-02
Test time
2026-07-08, 19:59:41 (UTC+8)
Height
80 mm
Environment
Open bench
CPU operating profile
PBO / unlocked power limits
PBO limits (PPT / TDC / EDC)
PPT 230W / TDC 175A / EDC 230A
Fan
Fan adapter
Thermalright AXP100 factory 90 mm-to-120 mm fan adapter
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM64°CMax 64°C
Motherboard32.1°CFinal-five-minute average
DIMM34.2°CMax 36°C
Chipset62.8°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.15°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
47.6°C
MISC VRM Avg
57°C
SSD Avg
36°C
CPU_FAN Avg
3,086.3 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

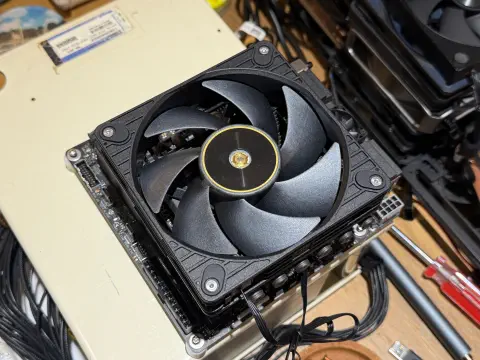

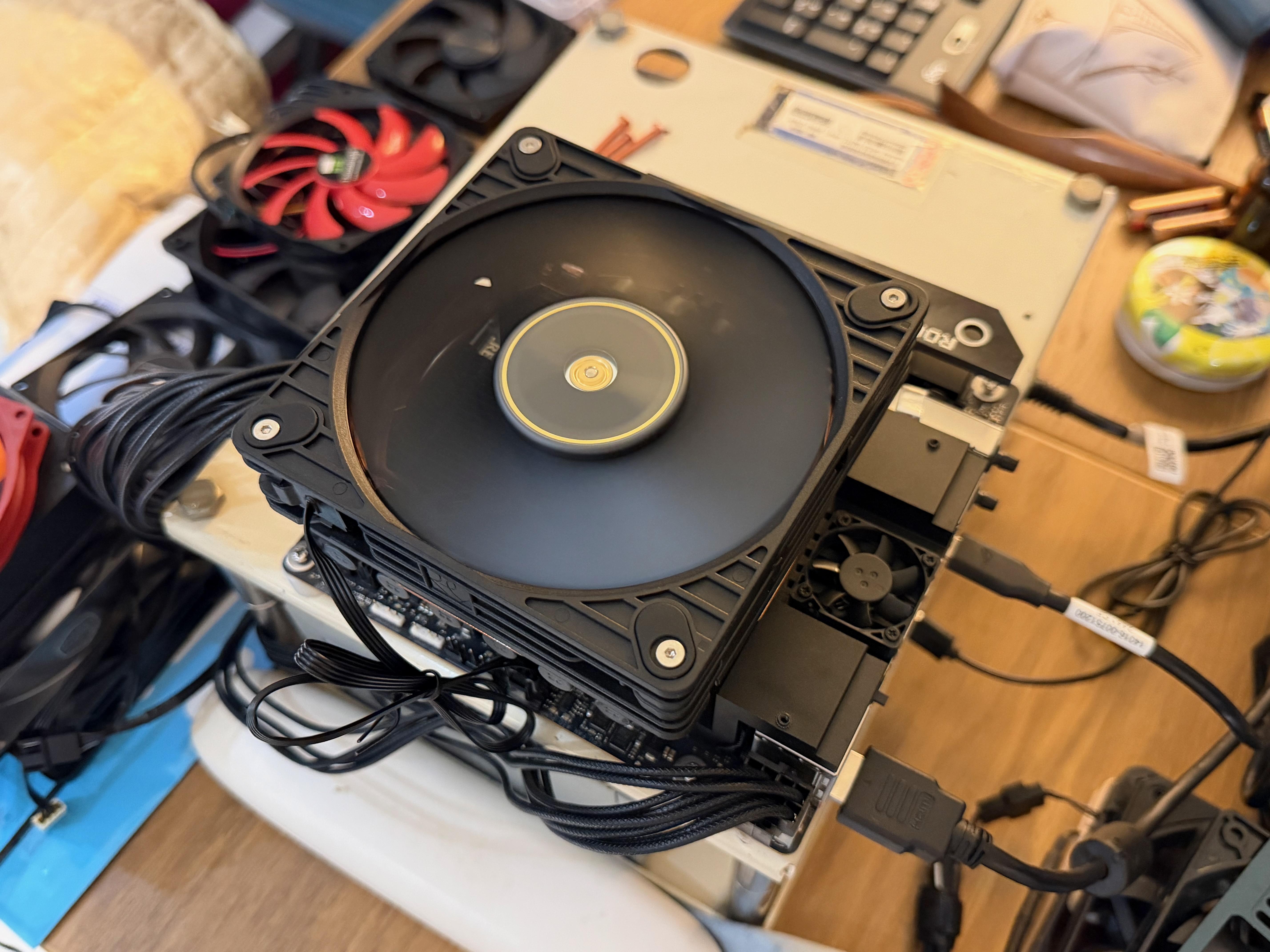

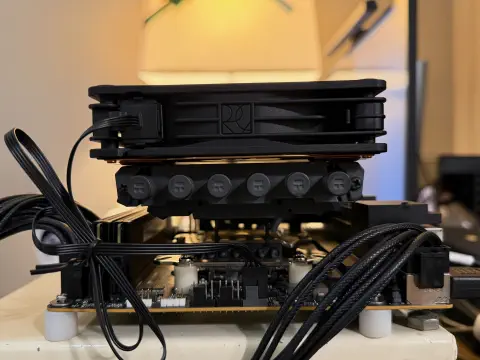

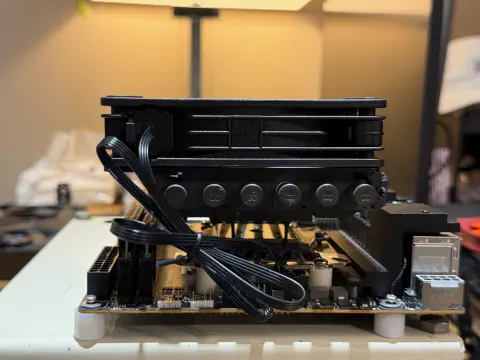

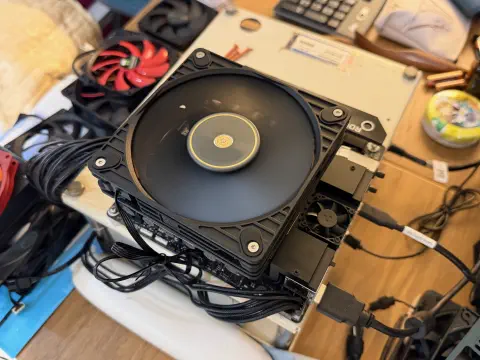

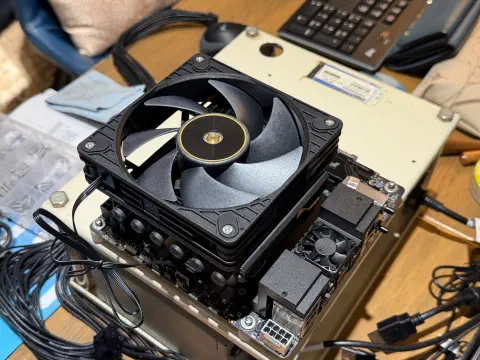

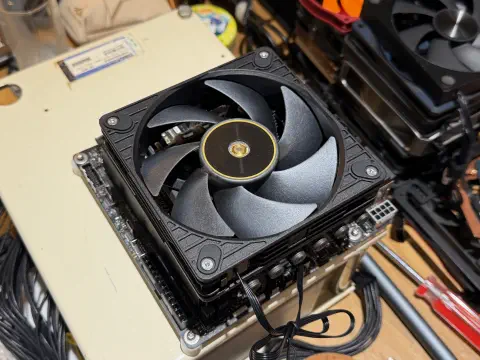

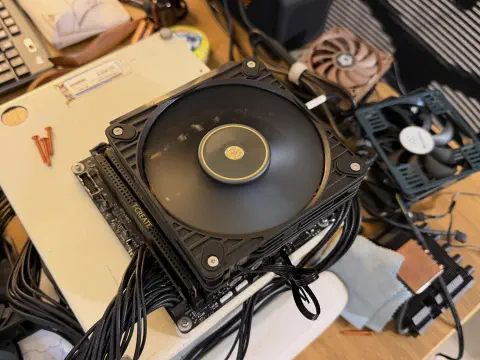

INSTALLATION PHOTOS

Installation photos

7 media items
