O074 / UNIT AXP100G-02 / Open bench / 75mm

INDIVIDUAL TEST RECORD · O074 · UNIT AXP100G-02

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

A / B SAMPLE CROSS-CHECK

Same configuration, different physical samples

This page uses AXP100G-02; O053 uses the same test configuration with AXP100G-01, making physical-sample variance easier to inspect.

R23 Score39,160ptsOpen bench · #35 / 65
R23 Sustained Power190.9WOpen bench · #30 / 76
AIDA64 Heat Dissipation177.3WOpen bench · #28 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    39,160 pts#35 of 65 · P48
  2. 02
    R23 SustainedLast-five-minute average power
    190.9 W#30 of 76 · P62
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    177.3 W#28 of 75 · P64
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.36 W/mm#63 of 75 · P17

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O074
Cooler ID
AXP100G-02
Test time
2026-07-08, 20:35:56 (UTC+8)
Height
75 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM67.2°CMax 68°C
Motherboard41.6°CFinal-five-minute average
DIMM42.7°CMax 43.5°C
Chipset72.3°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.41°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
52°C
MISC VRM Avg
62°C
SSD Avg
42.3°C
CPU_FAN Avg
4,139.8 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

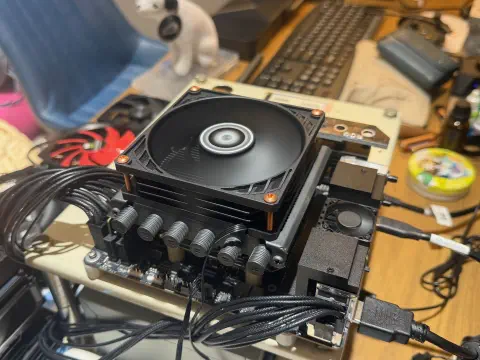

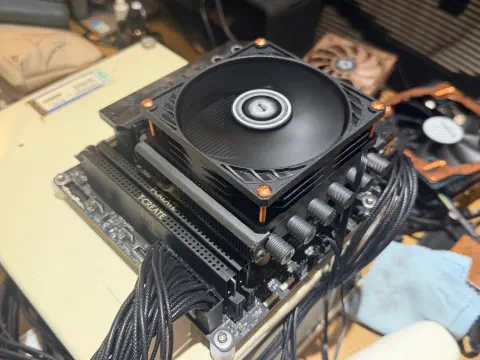

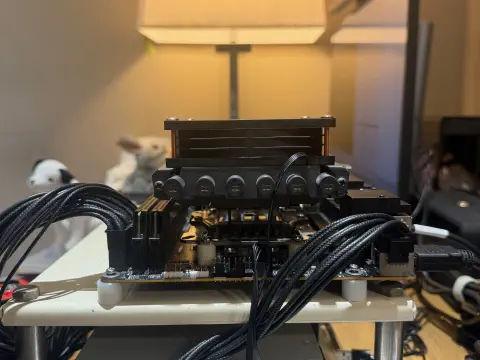

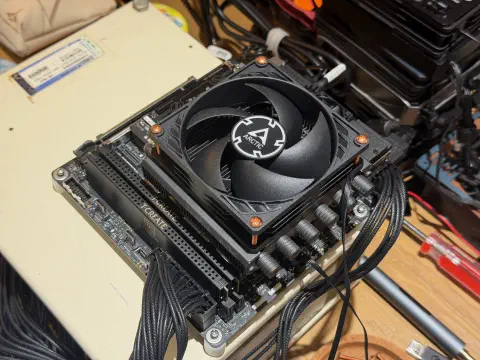

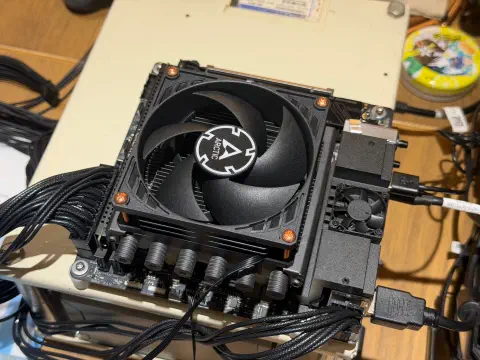

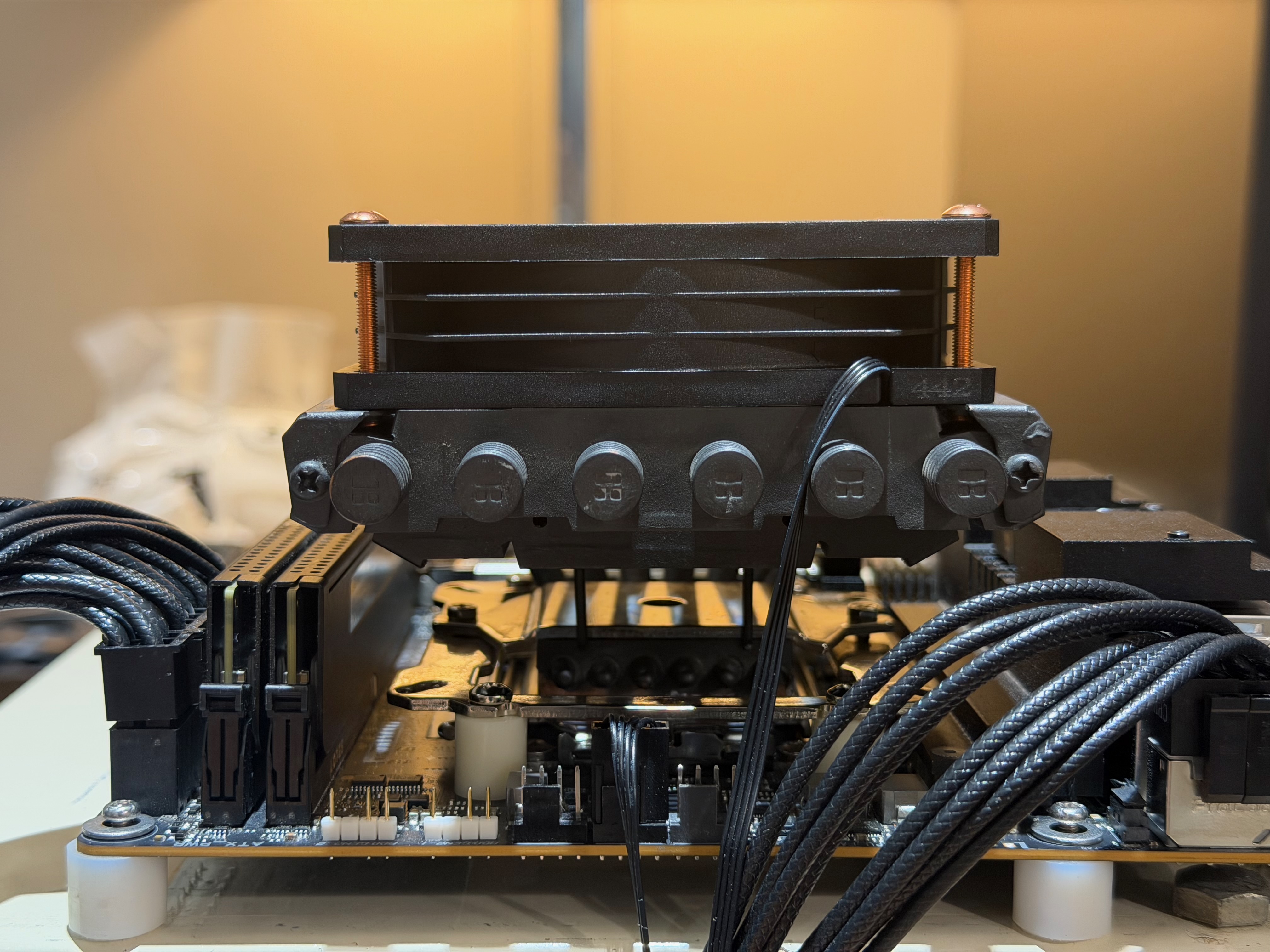

INSTALLATION PHOTOS

Installation photos

6 media items
