O075 / UNIT AXP100G-02 / Open bench / 65mm

INDIVIDUAL TEST RECORD · O075 · UNIT AXP100G-02

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

A / B SAMPLE CROSS-CHECK

Same configuration, different physical samples

This page uses AXP100G-02; O052 uses the same test configuration with AXP100G-01, making physical-sample variance easier to inspect.

R23 Score39,377ptsOpen bench · #28 / 65
R23 Sustained Power195WOpen bench · #19 / 76
AIDA64 Heat Dissipation177.9WOpen bench · #26 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    39,377 pts#28 of 65 · P58
  2. 02
    R23 SustainedLast-five-minute average power
    195 W#19 of 76 · P76
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    177.9 W#26 of 75 · P67
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.74 W/mm#41 of 75 · P47

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O075
Cooler ID
AXP100G-02
Test time
2026-07-08, 22:07:07 (UTC+8)
Height
65 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM66.4°CMax 67°C
Motherboard39.8°CFinal-five-minute average
DIMM41.6°CMax 42.2°C
Chipset71.4°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.38°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
51.8°C
MISC VRM Avg
60.8°C
SSD Avg
43.4°C
CPU_FAN Avg
5,332.8 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

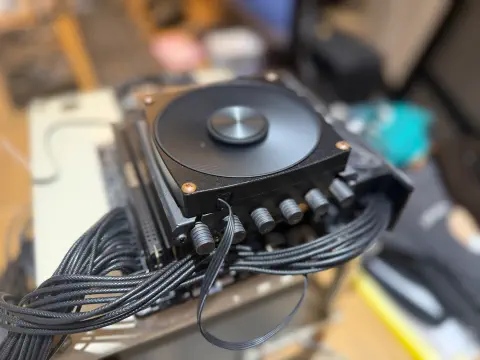

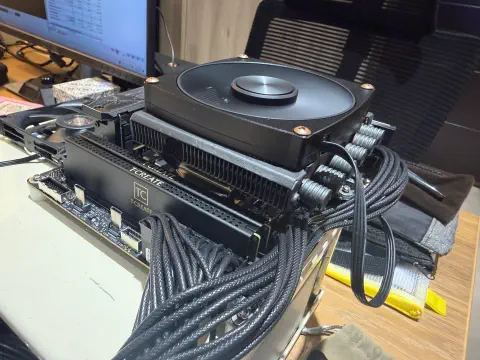

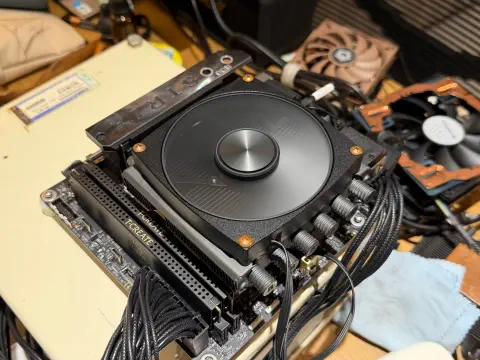

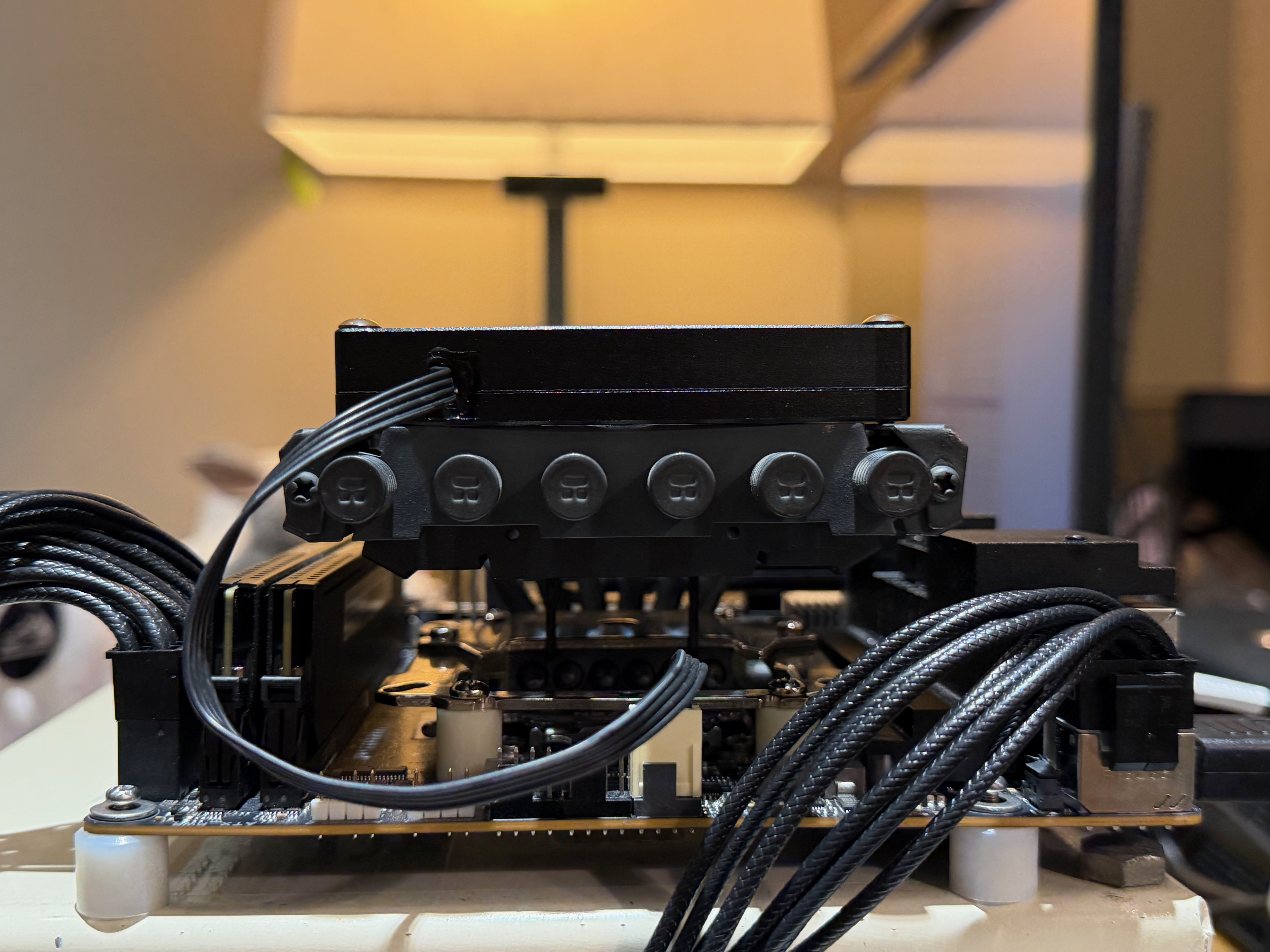

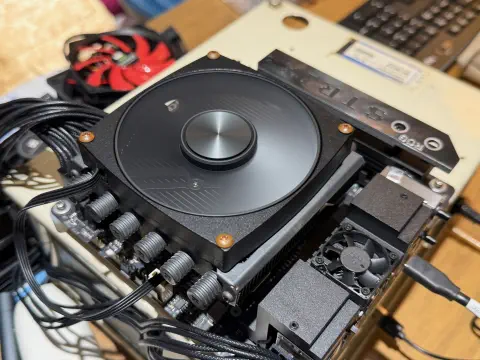

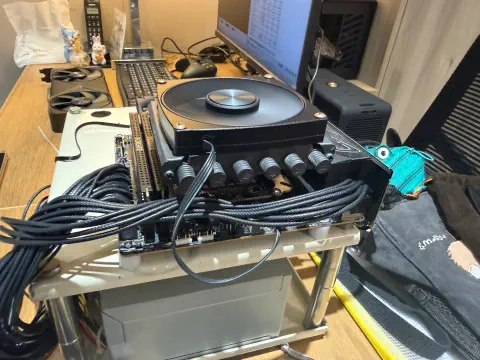

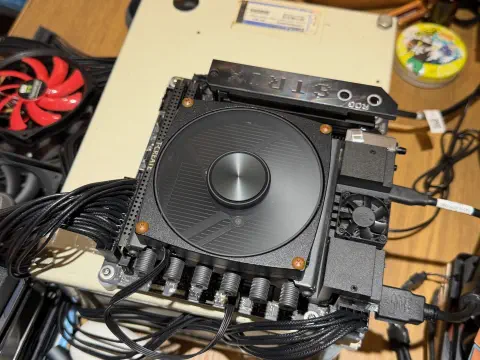

INSTALLATION PHOTOS

Installation photos

7 media items
