O076 / UNIT AXP100G-02 / Open bench / 80mm

INDIVIDUAL TEST RECORD · O076 · UNIT AXP100G-02

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score39,088ptsOpen bench · #39 / 65
R23 Sustained Power194.4WOpen bench · #23 / 76
AIDA64 Heat Dissipation179.8WOpen bench · #23 / 75
NoisePendingAdded after controlled sound testing
MEASURED PERFORMANCE PROFILECompared within Open bench
  1. 01
    R23 ScoreMulti-core score
    39,088 pts#39 of 65 · P42
  2. 02
    R23 SustainedLast-five-minute average power
    194.4 W#23 of 76 · P71
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    179.8 W#23 of 75 · P71
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.25 W/mm#70 of 75 · P8

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
O076
Cooler ID
AXP100G-02
Test time
2026-07-09, 12:34:10 (UTC+8)
Height
80 mm
Environment
Open bench
CPU operating profile
Stock settings
Fan
Fan adapter
XTIA 92 mm-to-120 mm fan adapter (for AXP100)
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM66.2°CMax 66.7°C
Motherboard37.5°CFinal-five-minute average
DIMM39.5°CMax 41.5°C
Chipset71.9°CFinal-five-minute average
Steady state reachedMaximum late-run sensor slope was 0°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
50.8°C
MISC VRM Avg
61.3°C
SSD Avg
42.9°C
CPU_FAN Avg
2,957.9 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Documented

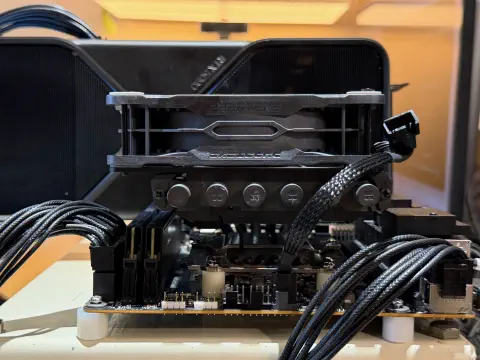

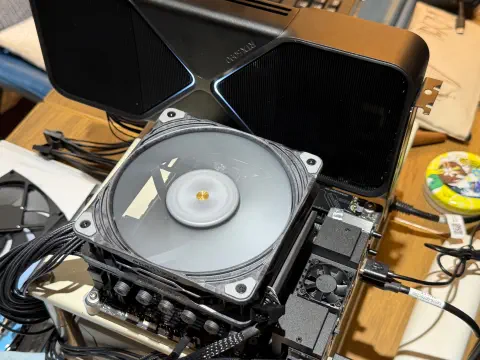

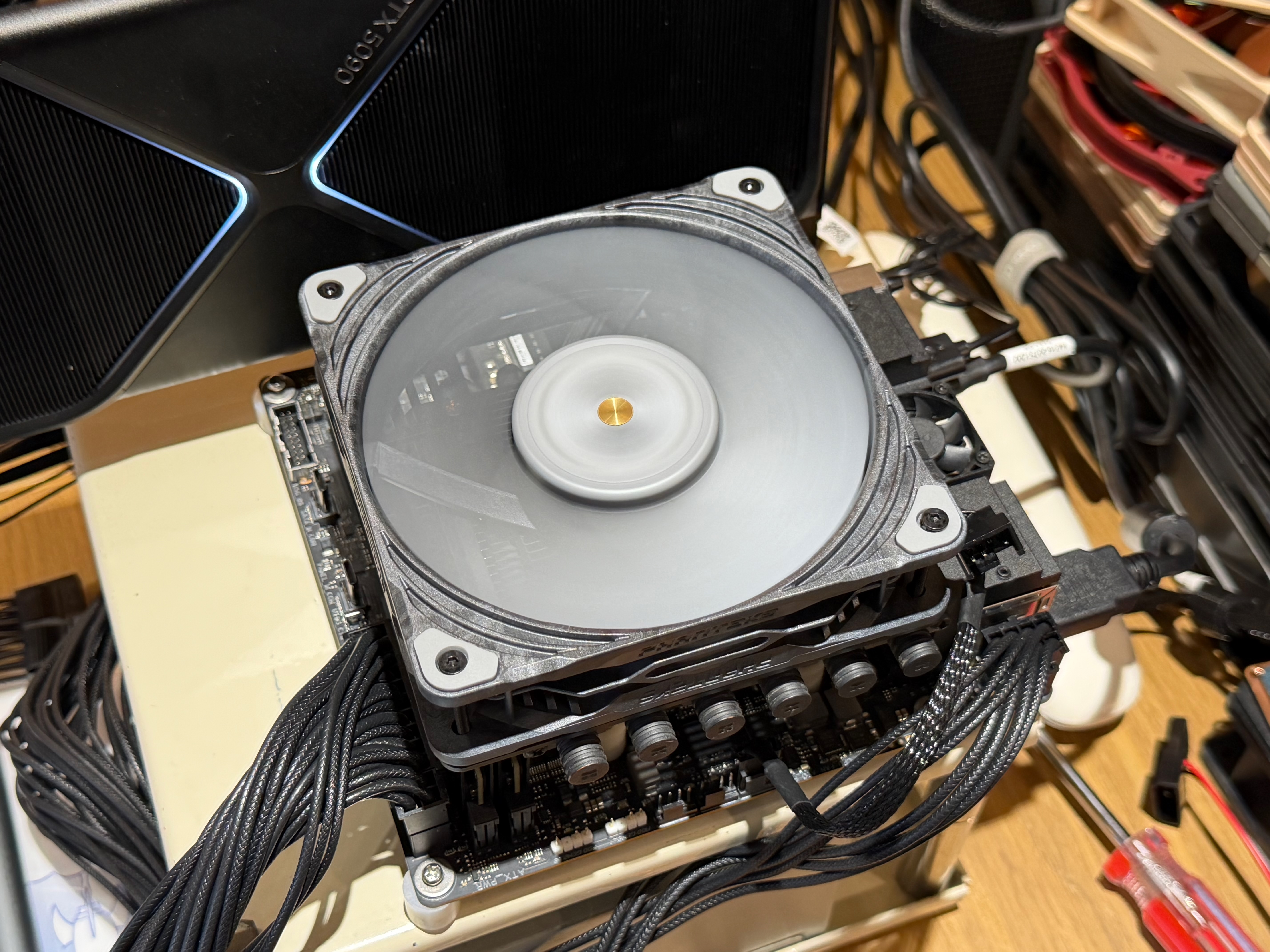

INSTALLATION PHOTOS

Installation photos

3 media items
