S5M002 / UNIT NHL9A-01 / S5M / 38mm

INDIVIDUAL TEST RECORD · S5M002 · UNIT NHL9A-01

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score28,809ptsS5M · #6 / 7
R23 Sustained Power105.9WS5M · #6 / 7
AIDA64 Heat Dissipation104WS5M · #6 / 7
Noise67.7dBAS5M · #5 / 6
MEASURED PERFORMANCE PROFILECompared within S5M
  1. 01
    R23 ScoreMulti-core score
    28,809 pts#6 of 7 · P29
  2. 02
    R23 SustainedLast-five-minute average power
    105.9 W#6 of 7 · P29
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    104 W#6 of 7 · P29
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.74 W/mm#1 of 7 · P100
  5. 05
    QuietnessMeasured dBA in the same environment; lower is better
    67.7 dBA#5 of 6 · P33

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
S5M002
Cooler ID
NHL9A-01
Test time
2026-07-23, 11:43:44 (UTC+8)
Height
38 mm
Environment
S5M
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM70.7°CMax 71°C
Motherboard55°CFinal-five-minute average
DIMM57.4°CMax 58.8°C
Chipset71.9°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.26°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
62.8°C
MISC VRM Avg
68°C
SSD Avg
56°C
CPU_FAN Avg
5,453.8 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
S5M; state pending

CONTROLLED ACOUSTIC RECORD

Measured acoustics

Noise results compare only formal records from the same environment and measurement generation. GM1351 is the current meter; a future professional-meter generation will remain separate from these results.

Average67.7 dBA
Valid range67.4–68 dBA
Valid samples34One sample per second
Sound meterGM1351Current measurement generation
S5M quietness #5 / 6This rank compares only formal records from the same environment and GM1351 measurement generation.
Sampling and exclusion log
Valid ranges
00:00–00:13、00:16–00:35，共34筆
Excluded range
00:14–00:15 手部短暫出現在畫面邊緣的時段

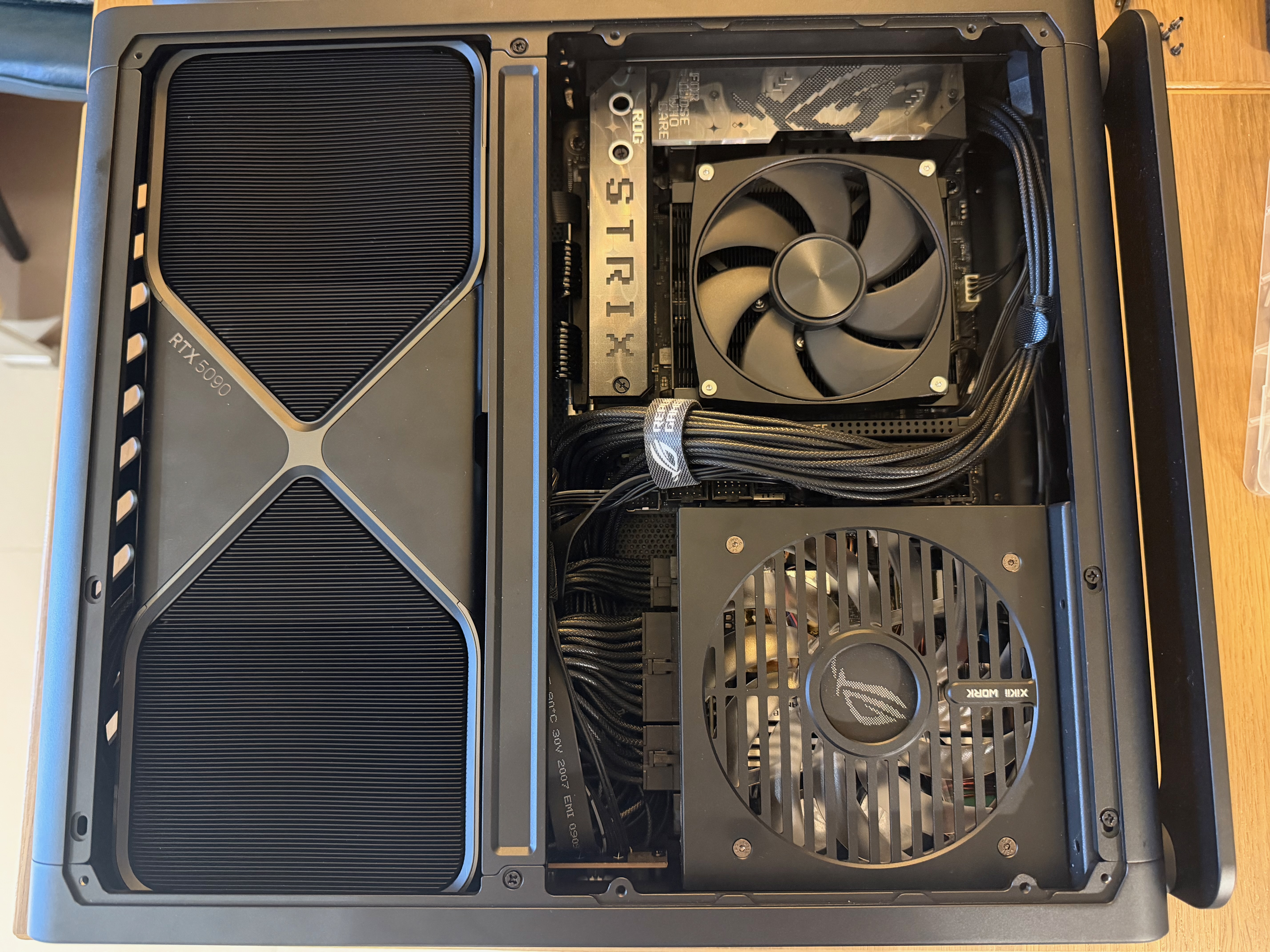

INSTALLATION PHOTOS
