S5M004 / UNIT X47G-02 / S5M / 47mm

INDIVIDUAL TEST RECORD · S5M004 · UNIT X47G-02

FAN
Single fan · Stock fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score30,773ptsS5M · #4 / 7
R23 Sustained Power118.3WS5M · #4 / 7
AIDA64 Heat Dissipation108.6WS5M · #4 / 7
Noise53.6dBAS5M · #2 / 6
MEASURED PERFORMANCE PROFILECompared within S5M
  1. 01
    R23 ScoreMulti-core score
    30,773 pts#4 of 7 · P57
  2. 02
    R23 SustainedLast-five-minute average power
    118.3 W#4 of 7 · P57
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    108.6 W#4 of 7 · P57
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.31 W/mm#5 of 7 · P43
  5. 05
    QuietnessMeasured dBA in the same environment; lower is better
    53.6 dBA#2 of 6 · P83

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
S5M004
Cooler ID
X47G-02
Test time
2026-07-24, 18:42:42 (UTC+8)
Height
47 mm
Environment
S5M
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM80.5°CMax 81°C
Motherboard64.5°CFinal-five-minute average
DIMM69.6°CMax 70°C
Chipset82.7°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.29°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
74°C
MISC VRM Avg
77°C
SSD Avg
58.9°C
CPU_FAN Avg
2,805.1 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
S5M; state pending

CONTROLLED ACOUSTIC RECORD

Measured acoustics

Noise results compare only formal records from the same environment and measurement generation. GM1351 is the current meter; a future professional-meter generation will remain separate from these results.

Average53.6 dBA
Valid range53.4–53.9 dBA
Valid samples26One sample per second
Sound meterGM1351Current measurement generation
S5M quietness #2 / 6This rank compares only formal records from the same environment and GM1351 measurement generation.
Sampling and exclusion log
Valid ranges
00:35–01:00，共26筆
Excluded range
前段測試操作及 00:30–00:34 滑鼠靠近噪音計的時段

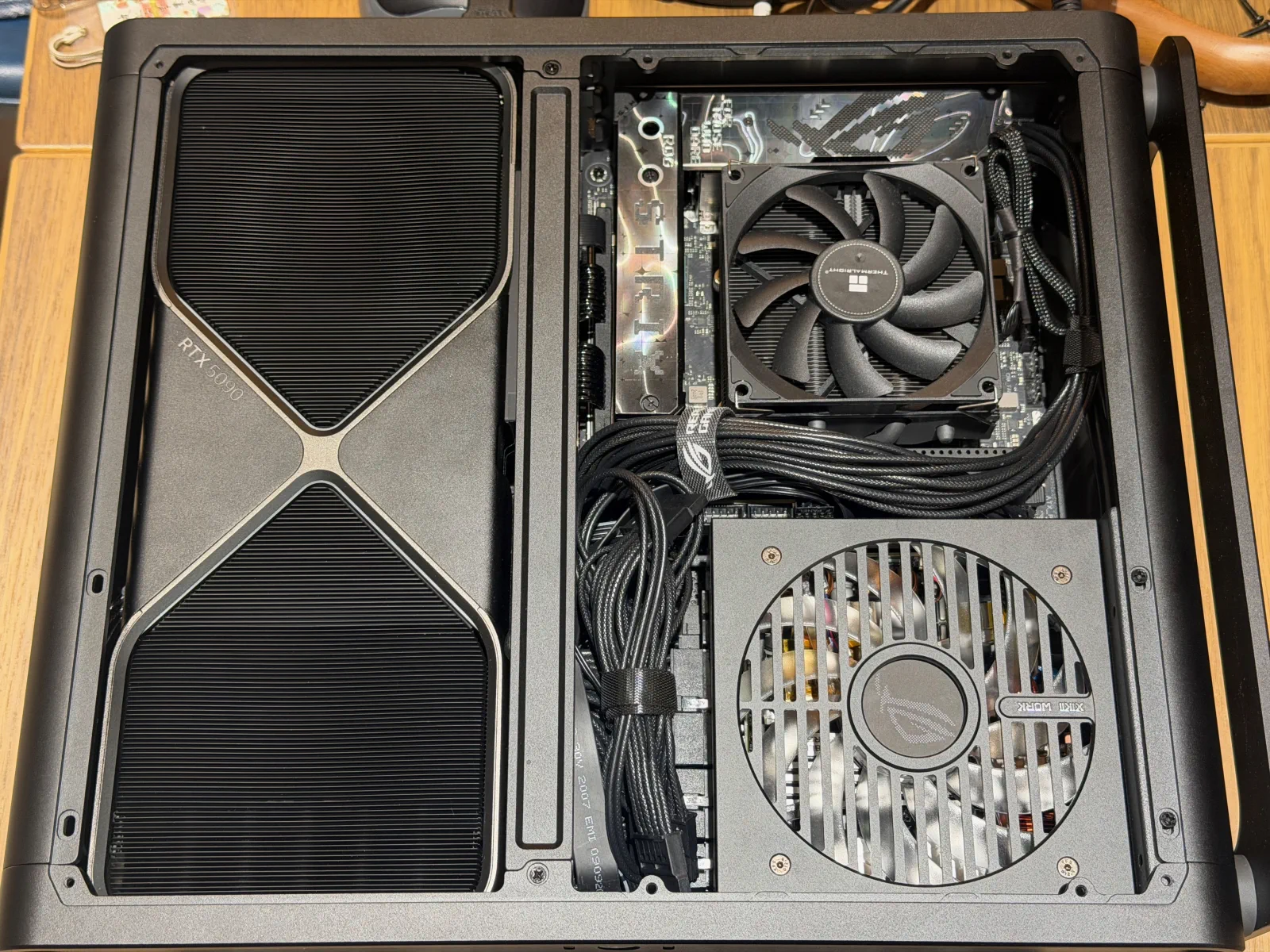

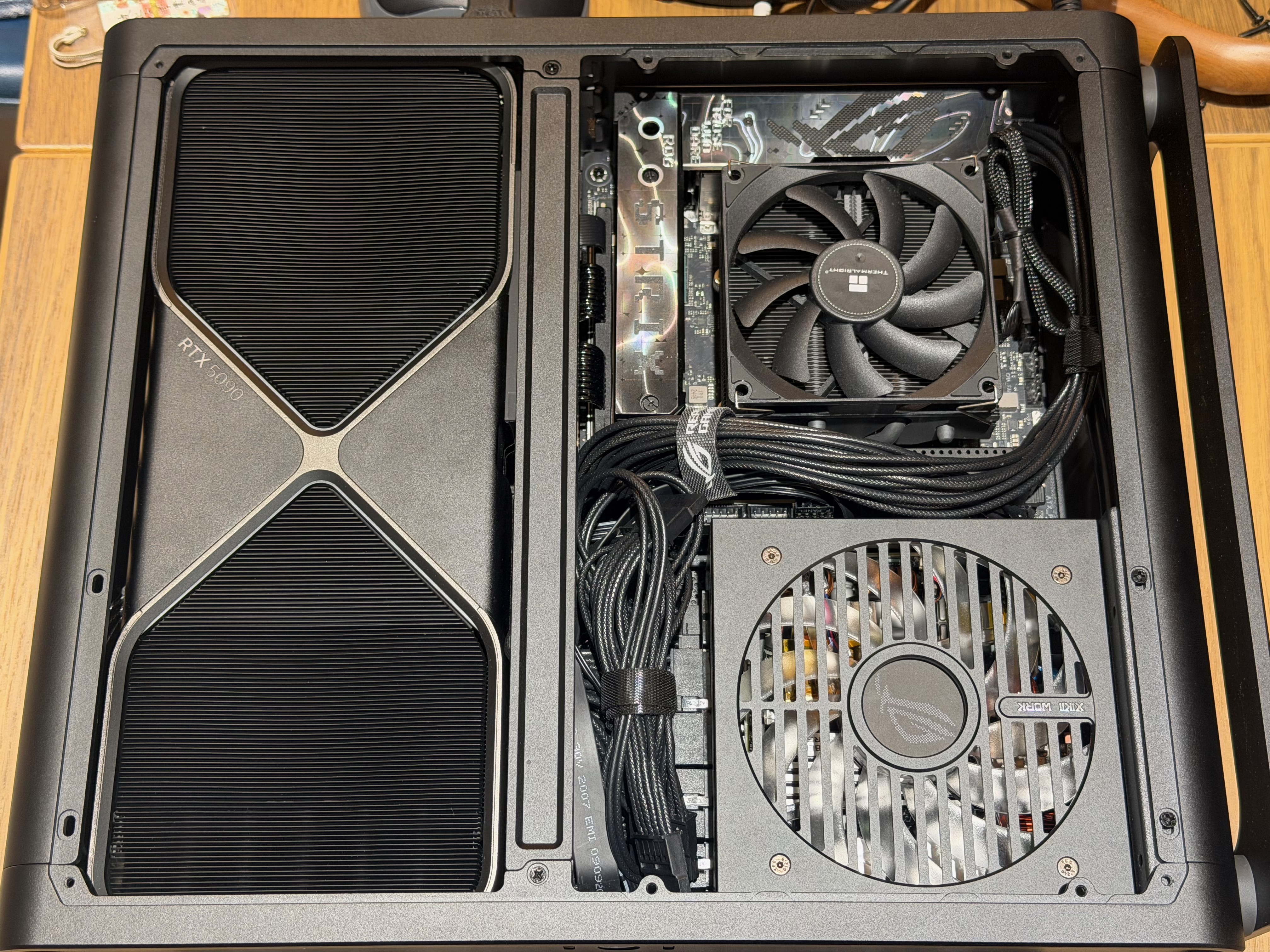

INSTALLATION PHOTOS

Installation photos

1 media items
