S5M005 / UNIT X47G-02 / S5M / 57mm

INDIVIDUAL TEST RECORD · S5M005 · UNIT X47G-02

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score33,454ptsS5M · #3 / 7
R23 Sustained Power140.2WS5M · #3 / 7
AIDA64 Heat Dissipation131.8WS5M · #3 / 7
Noise64.6dBAS5M · #3 / 6
MEASURED PERFORMANCE PROFILECompared within S5M
  1. 01
    R23 ScoreMulti-core score
    33,454 pts#3 of 7 · P71
  2. 02
    R23 SustainedLast-five-minute average power
    140.2 W#3 of 7 · P71
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    131.8 W#3 of 7 · P71
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.31 W/mm#4 of 7 · P57
  5. 05
    QuietnessMeasured dBA in the same environment; lower is better
    64.6 dBA#3 of 6 · P67

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
S5M005
Cooler ID
X47G-02
Test time
2026-07-26, 12:10:35 (UTC+8)
Height
57 mm
Environment
S5M
Case
NFC Skyreach 5 Mini (S5M)
Side panel
Closed
Air duct
Not installed
CPU operating profile
Stock settings
Fan
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM76.8°CMax 77°C
Motherboard57.6°CFinal-five-minute average
DIMM61.2°CMax 62°C
Chipset73°CFinal-five-minute average
Still warming at the endMaximum late-run sensor slope was 0.28°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
66°C
MISC VRM Avg
71.8°C
SSD Avg
52.8°C
CPU_FAN Avg
4,305.8 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Panel Closed · Duct Not installed

CONTROLLED ACOUSTIC RECORD

Measured acoustics

Noise results compare only formal records from the same environment and measurement generation. GM1351 is the current meter; a future professional-meter generation will remain separate from these results.

Average64.6 dBA
Valid range63.5–65.7 dBA
Valid samples27One sample per second
Sound meterGM1351Current measurement generation
S5M quietness #3 / 6This rank compares only formal records from the same environment and GM1351 measurement generation.
Sampling and exclusion log
Valid ranges
00:35–01:01，共27筆
Excluded range
前段測試操作及 00:30–00:34 滑鼠靠近噪音計的時段

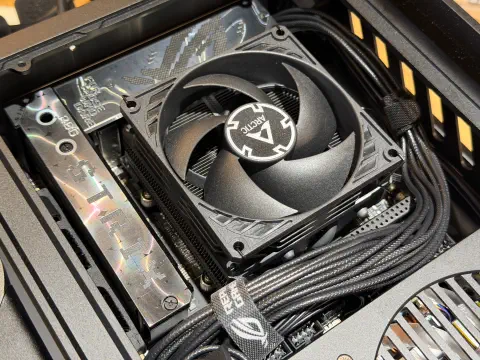

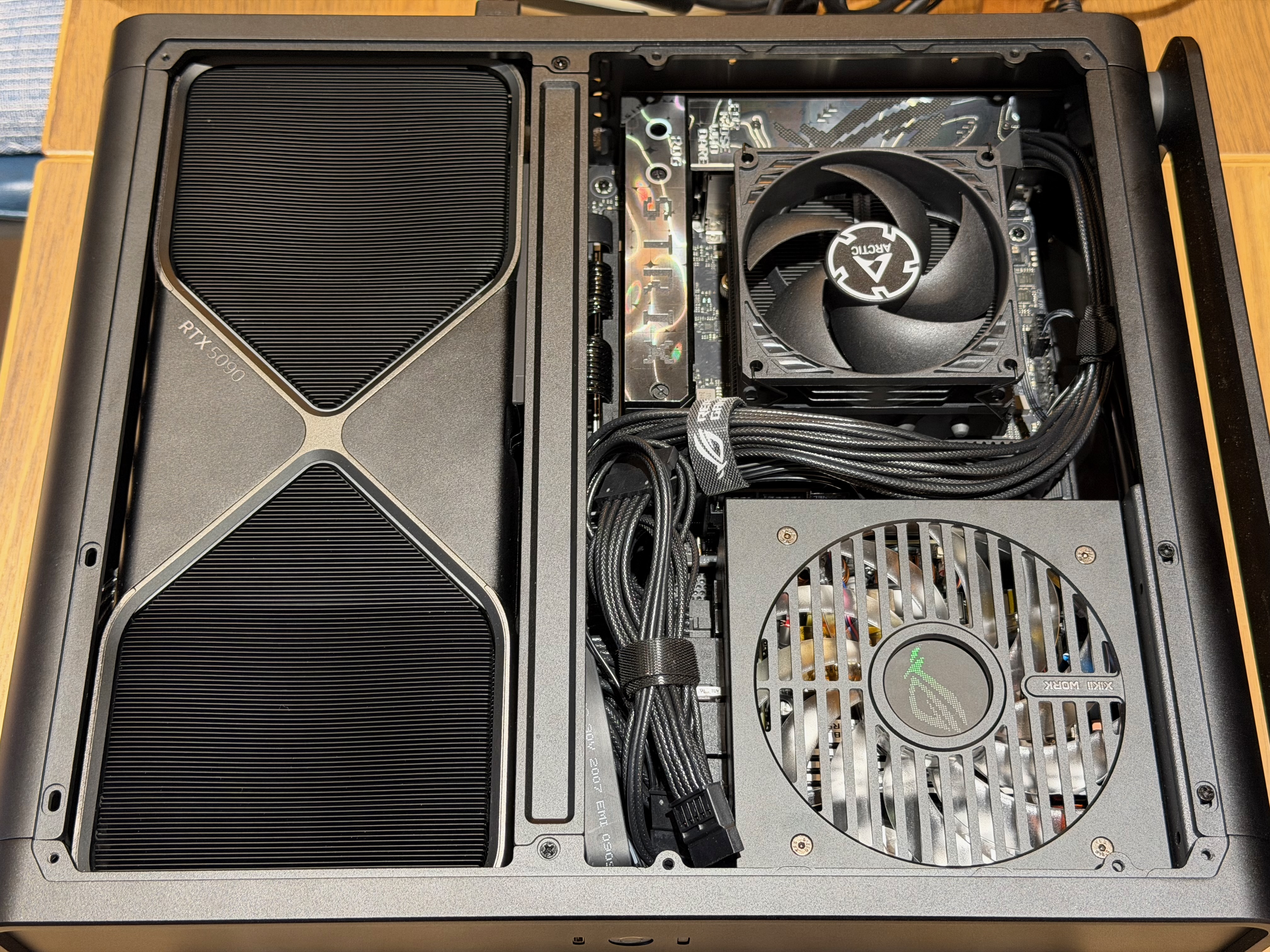

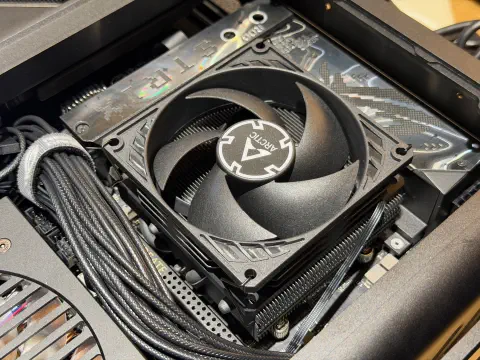

INSTALLATION PHOTOS

Installation photos

3 media items
