S5M007 / UNIT X47G-02 / S5M / 62mm

INDIVIDUAL TEST RECORD · S5M007 · UNIT X47G-02

FAN
Single fan
CPU PROFILEStock settings

The cooler and each fan link to separate profiles. The air duct is a test accessory, and the result belongs to the complete configuration above.

R23 Score36,259ptsS5M · #1 / 7
R23 Sustained Power162.2WS5M · #1 / 7
AIDA64 Heat Dissipation149.5WS5M · #1 / 7
Noise69.7dBAS5M · #6 / 6
MEASURED PERFORMANCE PROFILECompared within S5M
  1. 01
    R23 ScoreMulti-core score
    36,259 pts#1 of 7 · P100
  2. 02
    R23 SustainedLast-five-minute average power
    162.2 W#1 of 7 · P100
  3. 03
    AIDA64 CoolingLast-five-minute heat dissipation
    149.5 W#1 of 7 · P100
  4. 04
    Cooling per HeightAIDA64 cooling divided by total height
    2.41 W/mm#2 of 7 · P86
  5. 05
    QuietnessMeasured dBA in the same environment; lower is better
    69.7 dBA#6 of 6 · P17

Farther from the center means a higher relative result within the same test environment. Only measured metrics with at least three comparable records are included; missing values are omitted, and acoustics stays out until enough formal dBA data exists.

TEST CONDITIONSConditions saved per record
Test ID
S5M007
Cooler ID
X47G-02
Test time
2026-08-19, 23:57:59 (UTC+8)
Height
62 mm
Environment
S5M
Installation note
S5M in-case test with the Cooler Master MasterFan A120 FC in 4000 RPM mode and down-blowing orientation.
Case
NFC Skyreach 5 Mini (S5M)
Side panel
Closed
Air duct
Not installed
Duct installation note
The side panel was closed and no air duct was installed.
CPU operating profile
Stock settings
Fan
Fan adapter
XTIA 92 mm-to-120 mm Fan Adapter (AXP90 variant)
CPU
Ryzen 9 9950X3D
Ambient
28°C
PWM
100%
Thermal paste
ARCTIC MX-4

S5M COMPONENT TEMPERATURES

Component temperatures

Averages from the final five minutes of AIDA64, with maxima shown separately. These values reveal overhanging airflow and in-case heat soak and are not folded into the CPU cooling rank.

VDD VRM59°CMax 59°C
Motherboard38°CFinal-five-minute average
DIMM38.1°CMax 39.5°C
Chipset57.4°CFinal-five-minute average
Steady state reachedMaximum late-run sensor slope was 0.05°C/min. The direction of change is useful, but exact deltas remain provisional.
Full component-sensor data and conditions
SoC VRM Avg
50°C
MISC VRM Avg
55.5°C
SSD Avg
38.4°C
CPU_FAN Avg
3,894.4 RPM
Sampling window
Final five minutes of AIDA64
GPU load
No GPU stress load
Panel / duct
Panel Closed · Duct Not installed

CONTROLLED ACOUSTIC RECORD

Measured acoustics

Noise results compare only formal records from the same environment and measurement generation. GM1351 is the current meter; a future professional-meter generation will remain separate from these results.

Average69.7 dBA
Valid range69.4–70.2 dBA
Valid samples62One sample per second
Sound meterGM1351Current measurement generation
S5M quietness #6 / 6This rank compares only formal records from the same environment and GM1351 measurement generation.
Sampling and exclusion log
Valid ranges
00:00–01:02，共62筆有效樣本
Excluded range
00:33 · 00:33 was excluded because the display was obscured or reflected. Statistics use the values shown in the video and are not an instrument-calculated Leq or true instantaneous peak. Distance and time weighting were not recorded.

PHOTOS / VIDEO

Installation photos

7 media items
VIDEO

S5M007 full-speed acoustic test with the side panel closed, no air duct, and the MasterFan A120 FC in 4000 RPM mode; valid video samples average 69.7 dBA.

Media IDV011Captured2026-08-20 00:16LicenseCC BY 4.0CreditTK Lab · CC BY 4.0View S5M007 →
01 / 06

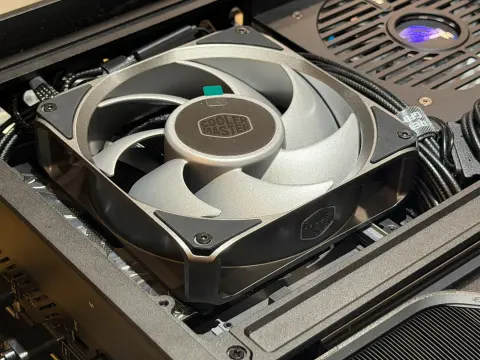

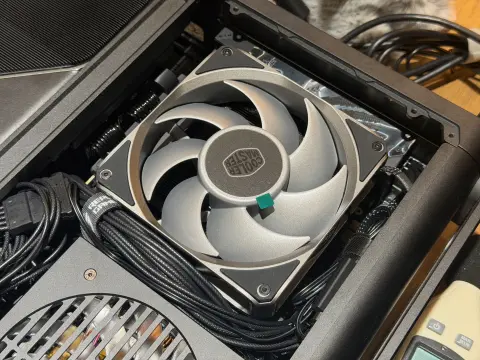

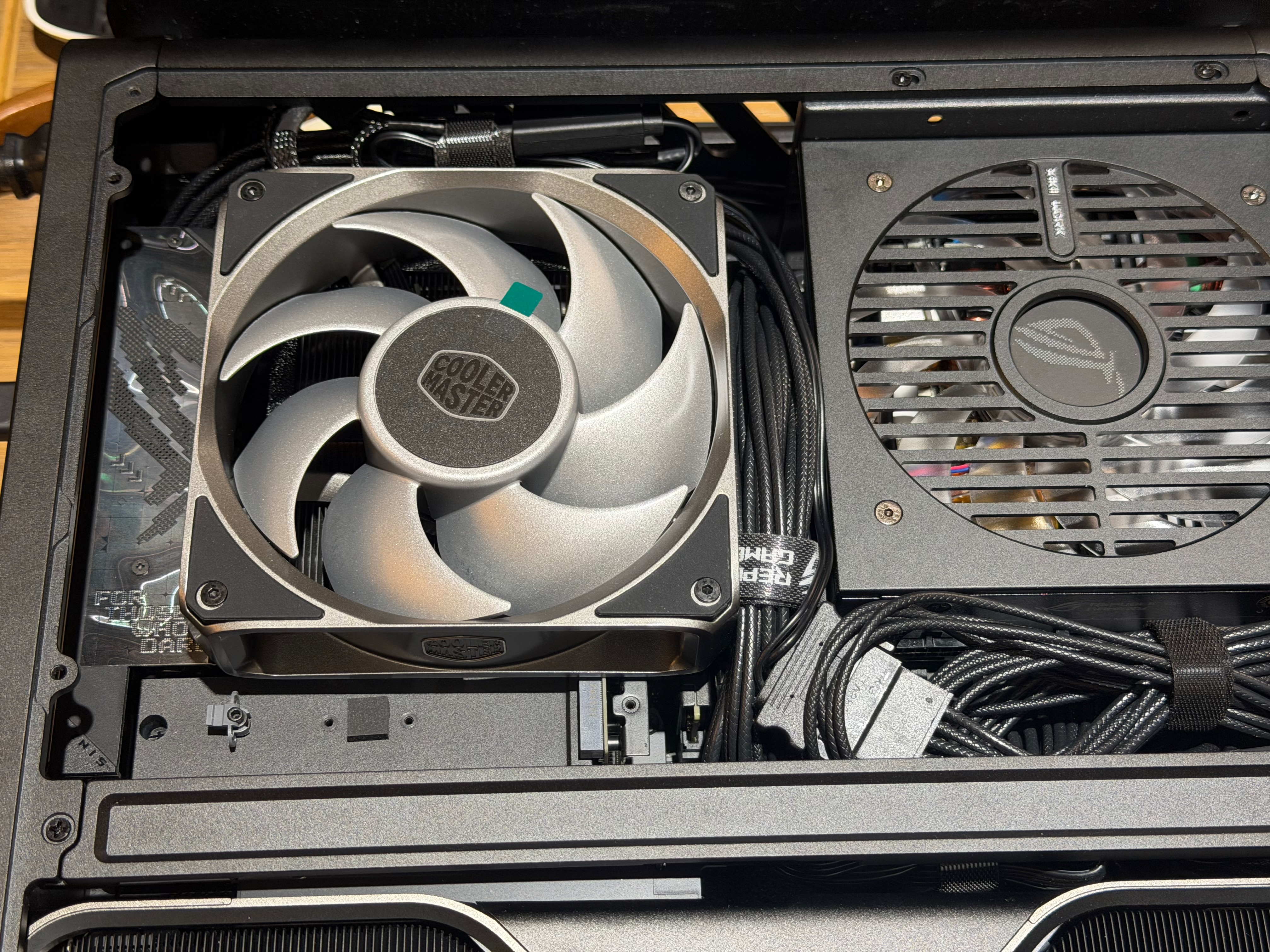

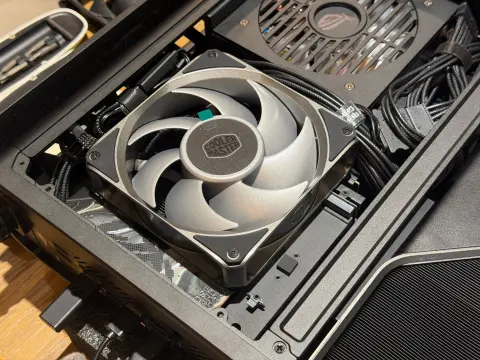

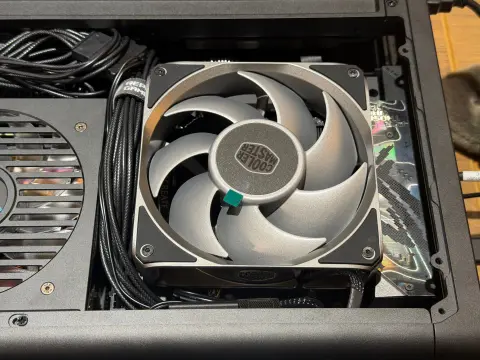

Complete S5M007 in-case configuration, showing the AXP90-X47 Full Copper Graphene, MasterFan A120 FC, and nearby S5M components.

Media IDM415Captured2026-08-19 23:02LicenseCC BY 4.0CreditTK Lab · CC BY 4.0View S5M007 →View original →
